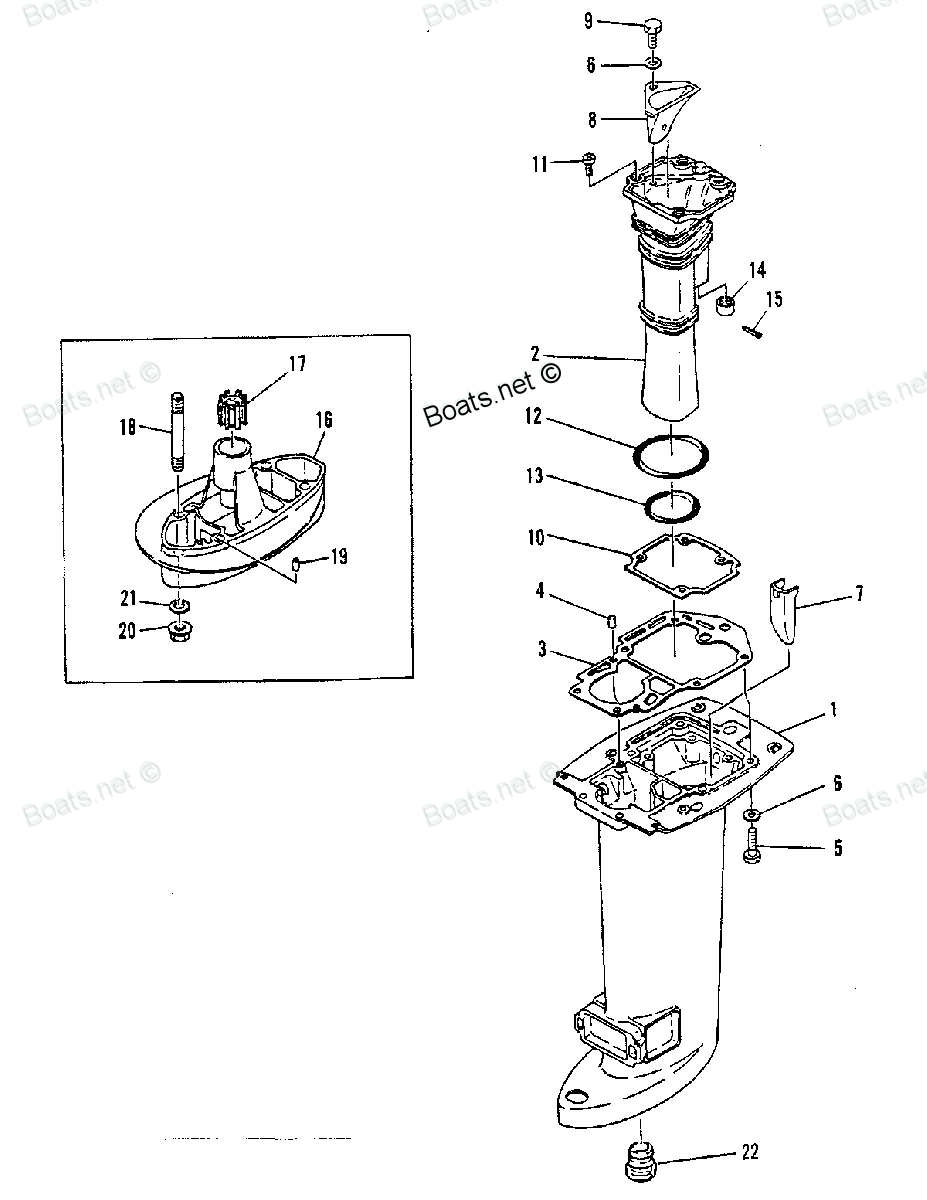

DRIVESHAFT HOUSING
Parts on group DRIVESHAFT HOUSING:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8244M | [1] | DRIVESHAFT HOUSING (M AND E) | SERIAL 00018821-09999999 |
| 1. | 7842M | [1] | DRIVESHAFT HOUSING (M AND E) | SERIAL 00000000-00018820 |
| 1. | 7843M | [1] | DRIVESHAFT HOUSING (ML, EL AND SUL) | |
| 10. | 81573M | [1] | GASKET, EXHAUST MANIFOLD | |
| 11. | 83870M | [4] | SCREW | |
| 12. | 84780M | [1] | SEAL, UPPER | |
| 13. | 84781M | [1] | SEAL, LOWER | |
| 14. | 97635M | [1] | SEAL, WATER TUBE | SERIAL 00008626-09999999 |
| 14. | 84782M | [1] | SEALC WATER TUBE (ML, EL AND SUL) | |
| 15. | 82131M | [1] | PIN, COTTER | |
| 16. | 84783M | [1] | EXTENSION (SUL) | |
| 17. | 84784M | [1] | BUSHING, DRIVESHAFT (SUL) | |
| 18. | 84785M | [4] | STUD (SUL) | |
| 19. | 82364M | [2] | PIN, DOWEL (SUL) | |
| 2. | 84774M | [1] | MANIFOLD, EXHAUST | |
| 20. | 84786M | [4] | NUT (SUL) | |
| 21. | 82220M | [4] | WASHER (SUL) | |
| 22. | 43114M | [1] | SEAL | SERIAL 00018821-09999999 |
| 3. | 84775M | [1] | GASKET, DRIVESHAFT HOUSING | |
| 4. | 82364M | [2] | PIN, DOWEL | |
| 5. | 82465M | [6] | BOLT | |
| 6. | 82217M | [7] | WASHER | |
| 7. | 84776M | [1] | GUIDE (M AND E) | |
| 7. | 84777M | [1] | GUIDE (ML, EL AND SUL) | |
| 8. | 84778M | [1] | EXHUAST GUIDE | |
| 9. | 95206M | [1] | BOLT | SERIAL 00018821-09999999 |
| 9. | 84779M | [1] | BOLT | SERIAL 00000000-00018820 |
