M140A2
2003,2004,2005

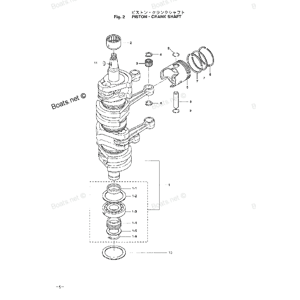

PISTON & CRANK SHAFT
Parts on group PISTON & CRANK SHAFT:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3C7-00050-2 | [1] | CRANKSHAFT ASS'Y | |
| 1-1. | 3B7-00116-0 | [1] | SPACER, 40-52-7 | |
| 1-2. | 3B7-00115-0 | [1] | WASHRER,66-85-2 | |
| 1-3. | 3C7-00118-0 | [1] | BEARING, 6208 | |
| 1-4. | 3B7-09060-0 | [1] | DRIVE GEAR, OIL PUMP | |
| 1-5. | 353-64036-0 | [1] | SHIM, 36-44-0.3 | |
| 1-5. | 353-64038-0 | [1] | SHIM, 36-44-0,1 | |
| 1-6. | 945107-3500 | [1] | C-RING, D=35 | |
| 11. | 334-00131-0 | [1] | MAGNETO KEY | |
| 2. | 3C7-00113-0 | [1] | MAIN BEARING UPPER | |
| 3. | 3C7-00042-0 | [4] | NEEDLE BEARING, 20-25-28 | |
| 4. | 353-00046-0 | [8] | WASHER, SMALL END BEARING | |
| 5. | 3C7-00001-1 | [4] | PISTON (STD) | |
| 5. | 3C7-00004-1 | [4] | PISTON (0.5 0/S) | OPT |
| 6. | 3C7-00014-0 | [4] | PISTON RING 1ST (0.5 0/S) | OPT |
| 6. | 3C7-00011-0 | [4] | PISTON RING 1ST (STD) | |
| 7. | 3C7-00012-0 | [8] | PISTON RING 2ND | |
| 8. | 3C7-00015-0 | [8] | PISTON RING 2ND (0.5O/S) | OPT |
| 8. | 360-00021-0 | [4] | PISTON PIN | |
| 9. | 353-00024-1 | [8] | CLIP,PISTON PIN |
