MAGNETO M40C Tohatsu EPC Parts Catalog



M40C

MAGNETO

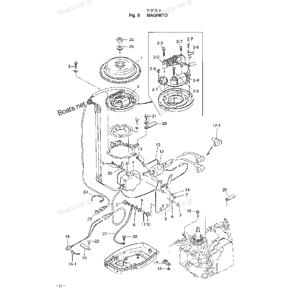

Parts on group MAGNETO:

Pos. Part No Qty Parts name Comments
1. 361-06091-0 [1]   FLYWHEEL CUP FP5506 # 91569-
10. 3F3-06920-0 [2]   RUBBER MOUNT, 9-12-2
11. 3A0-76079-0 [2]   COLLAR, 6.2-9-7.4
12. 361-06040-1 [1]   IGNITION COIL (WITH RESISTANCE CAP)
12-1. 3C7-06921-0 [2]   PLUG CAP (WITH RESISTANCE)
13. 910113-5620 [2]   BOLT
14. 941303-0600 [2]   SPRING WASHER
15. 3B7-76142-0 [1]   GROUND CABLE L=120
16. 398-06830-0 [1]   LANYARD STOP SWITCH
16-1. 353-06821-0 [1]   LOCK, LANYARD STOP SWITCH
17. 345-06917-1 [1]   CLAMP, 9-20U
18. 910114-0820 [1]   BOLT
19. 930113-0800 [1]   NUT
2. 3A0-06002-0 [1]   COIL PLATE ASSEMBLY
2-1. 3G2-06022-0 [1]   PULSER COIL
2-2. 3A0-06023-0 [1]   ALTERNATOR
2-3. 921521-6528 [2]   SCREW
2-4. 3G2-06021-0 [1]   EXCITER COIL
2-5. 921521-6522 [2]   SCREW
2-6. 350-06025-0 [1]   HOLDER, MAGNETO CORD
2-7. 921521-6406 [3]   SCREW
2-8. 921521-6408 [2]   SCREW
20. 309-06972-0 [4]   CLAMP, 6.5-47.5P
21. 922503-6510 [1]   SCREW
22. 910113-0612 [1]   BOLT
23. 353-76037-0 [1]   PLUG, CABLE TERMINAL
24. 336-76091-0 [1]   BAND, LEAD WIRE
25. 931121-1600 [1]   NUT, MAGNETO (16P-1.5) #032986XD - Clockwise
25. 334-00132-0 [1]   NUT, MAGNETO (16P-1.5L) - # 028121XD Counterclockwise
26. 345-00133-0 [1]   WASHER, 16-28-3.2
27. 3C7-76142-0 [1]   GROUND CABLE L=170 for MF type
28. 910103-0612 [1]   BOLT for MF type
3. 921521-6510 [4]   SCREW
4. 361-06060-1 [1]   C.D. UNIT CU 2503
5. 910103-6625 [5]   BOLT
6. 3c8-66308-0 [4]   WASHER, 6-16-1.5
7. 930113-0600 [4]   NUT
8. 3A0-06322-0 [1]   PLATE, ELECTRIC
9. 3B7-06305-0 [2]   RUBBER MOUNT, 9-16-4.3
