TOP COWL, MOTOR COVER UPPER MD50B2 Tohatsu EPC Parts Catalog

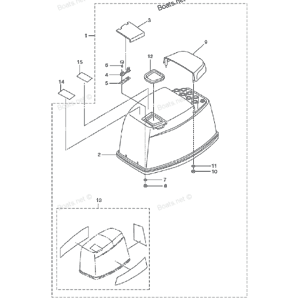

TOP COWL, MOTOR COVER UPPER



Parts on group TOP COWL, MOTOR COVER UPPER:

Pos. Part No Qty Parts name Comments
1. 3GFQ67645-0 [1]   TOP COWL ASSEMBLY, SERVICE
10. 930403-0600 [4]   NYLON NUT 6P1.0 For Tilt Handle
11. 3C8-66308-0 [4]   WASHER 6-16-1.5
12. 3E3-67213-0 [1]   SEAL RUBBER FILLER LID
13. 3GF-87802-0 [1]   DECAL, MD50B2 50ps
14. 3C7-72180-3 [1]   CAUTION DECAL A
15. 3T1-72043-0 [1]   OIL CAUTION DECAL
2. 3C8-67501-0 [1]   TOP COWL SEAL
3. 3E3Q67210-1 [1]   FILLER LID
4. 3B7-67211-0 [1]   FILLER LID HINGE
5. 3C8-67212-1 [1]   SPRING SPRING
6. 910103-0614 [2]   BOLT
7. 941303-0600 [2]   SPRING WASHER
8. 930103-0600 [2]   NUT for Filler Lid
9. 3E3Q67521-1 [1]   TILT HANDLE
