D100BHC; D100BRC; TD100AHC; TD100ARC Transmissions

CLUTCH AND INSTALLATION COMPONENTS

TD100ARC

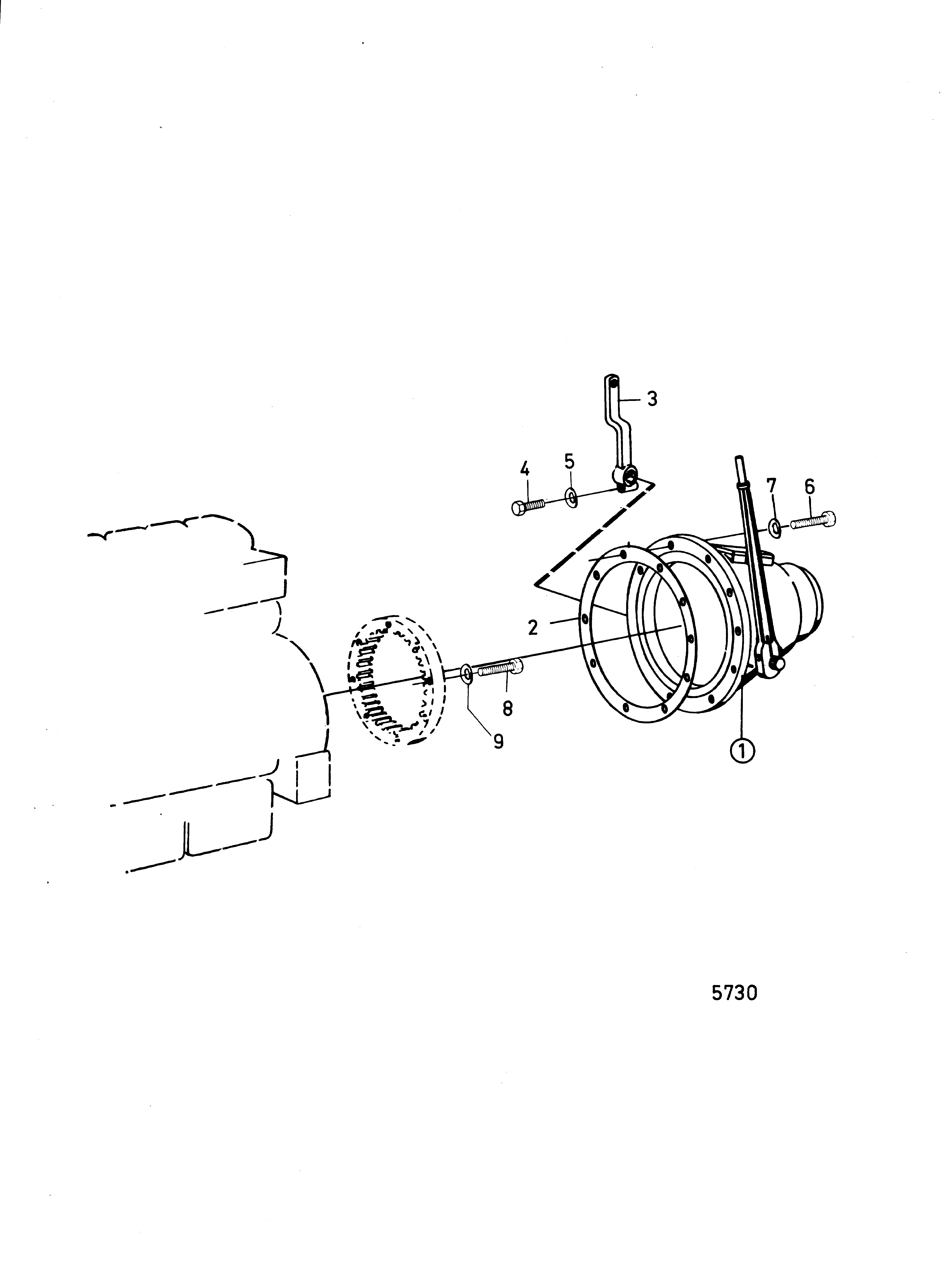

Parts on group CLUTCH AND INSTALLATION COMPONENTS:

Pos. Part No Qty Parts name Comments
1. 821366 [1]   Clutch
1.
2. 800314 [1]   Gasket
3. 31143 [1]   Lever
4. 959644 [1]   Hexagon screw
5. 941908 [1]   Spring washer
6. 940160 [12]   Hexagon screw
7. 941909 [12]   Spring washer
8. 955562 [8]   Hexagon screw
9. 940280 [8]   Spring washer
