MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40B Steering System

Steering Cable Lock

MD40A, TMD40A, TMD40B, TMD40C, AQD40A, TAMD40A, TAMD40B, AD40B, AQAD40A, AQAD40B

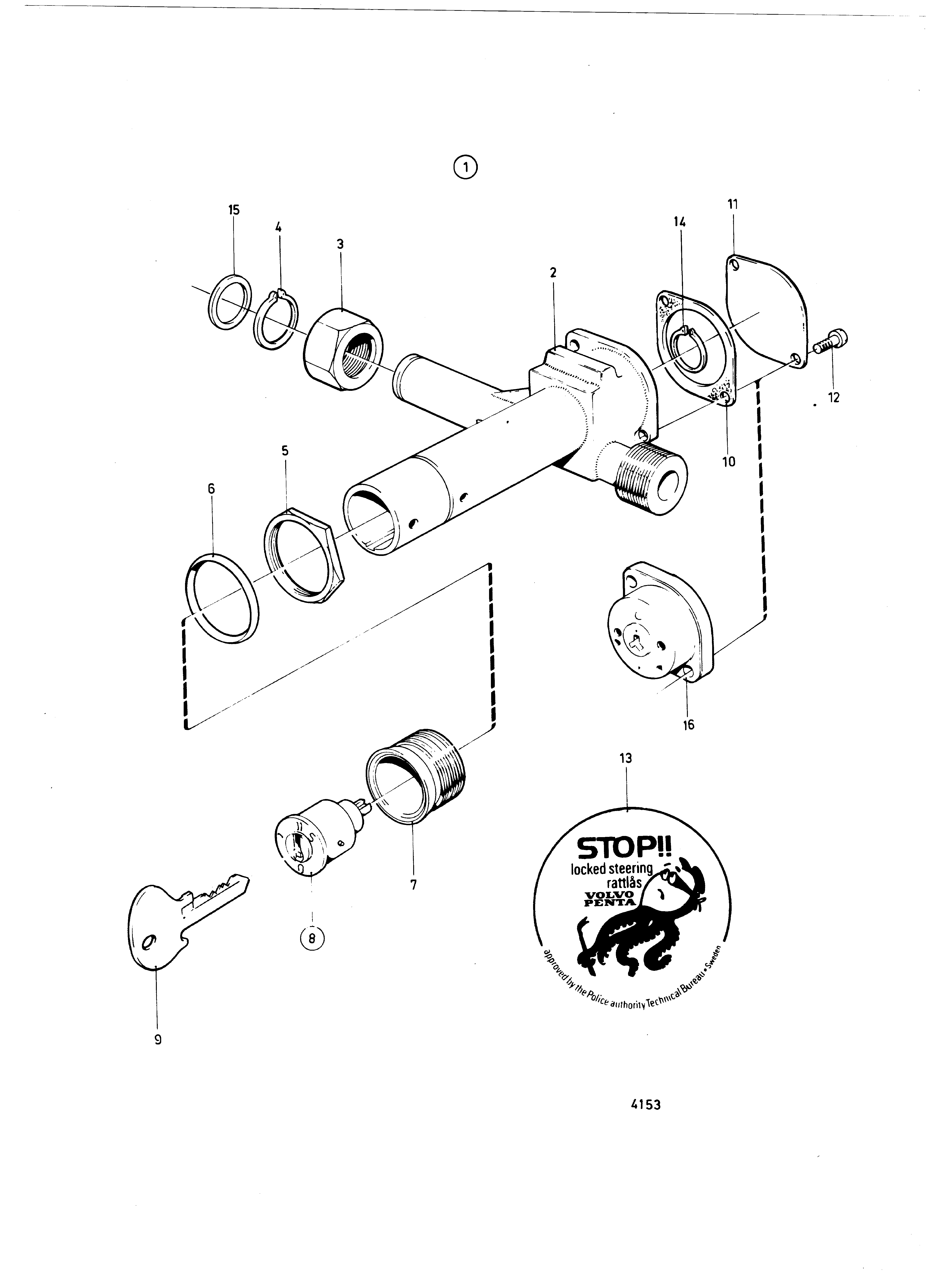

Parts on group Steering Cable Lock:

Pos. Part No Qty Parts name Comments
1. 839544 [1]   Steering lock
2.
3. 839531 [1]   Nut
4. 914450 [1]   Snap ring
5. 832476 [1]   Lock nut
6. 839523 [1]   Lock ring
7. 839512 [1]   Lock sleeve
8. 839532 [1]   Lock cylinder
9. 831606 [1]   Key Indiquer code de clef quand vous ordez
10. 1140051 [1]   Gasket (839543)
11. 839542 [1]   Protecting cover
12. 956060 [2]   Cross recessed screw
13.
14. 914448 [1]   Snap ring
15. 850221 [2]   Washer
16. 839492 [1]   Plate
