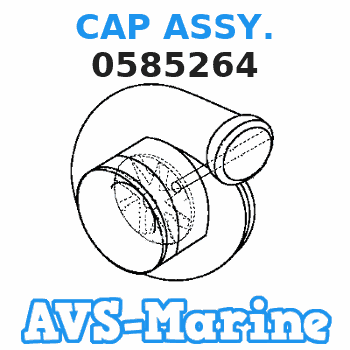

0585264 CAP ASSY. EVINRUDE
BE115TLEDA, BE130TLECE, BE130TLEDM, BE130TLEUB, BE40EECR, BE40EEDS, BE40EEUC, BE50BEEDS, BE50DTLEDC, BE50DTLEUR, BE50ESECC, BE50RLEUC, BE60ELEDR, BE60ELEUA, BE60TLECM, BE70ELECB, BE70ELEDA, BE70ELEUM, E100STLERC, E100WTLEDR, E100WTLEOC, E100WTLERS, E
CAP
Price: query
Rating:
Compatible models:
BE115TLEDA
BE130TLECE
BE130TLEDM
BE130TLEUB
BE40EECR
BE40EEDS
BE40EEUC
BE50BEEDS
BE50DTLEDC
BE50DTLEUR
BE50ESECC
BE50RLEUC
BE60ELEDR
BE60ELEUA
BE60TLECM
BE70ELECB
BE70ELEDA
BE70ELEUM
E100STLERC
E100WTLEDR
E100WTLEOC
E100WTLERS
E100WTLEUA
E112TSLEDR
E112TSLEOC
E112TSLERS
E115JKLEOC
E115JKLERS
E115JLEOR
E115JLERC
E115JLEUM
E115TSLECM
E115TSLEUA
E120TLERC
E125ESXERK
E125WTPLE
E130CXAOR
E140CXARC
E40EEOD
E40EERE
E48ESLEDC
E48ESLEOS
E48ESLERD
E50BEEOD
E50BEERE
E50DTLECA
E50DTLEOS
E50TTLECA
E50TTLEDC
E50TTLEOS
E50TTLEUR
E60ELEOC
E60ELERS
E60TTLECM
E60TTLEDR
E60TTLEOC
E60TTLERS
E60TTLEUA
E65WELEES
E65WELSIR
E65WELSSC
E65WMLEOC
E65WMLERS
E70ELEOR
E70ELERC
E70TTLEOR
E70TTLERC
E85TTLEOR
E85TTLERC
E88MSLEDC
E88MSLEOS
E88MSLERD
E88TSLEDR
E88TSLEOC
E88TSLERS
E90TSLECM
E90TSLEUA
HE55WMLM
HE55WMLZ
SE100WMPLM
SE100WMPLZ
SE125WTPLJ
SE125WTPLN
SE125WTPLV
SE65WMLD
SE65WMLM
SE65WMLZ2
EVINRUDE
BRP EVINRUDE entire parts catalog list:
- ELECTRIC STARTER & SOLENOID » 0585264
BE130TLEDM, E130TLEDM, E130TXADA, HE130CXADA, HE130TXADA 1996
BE130TLEUB, E130TLEUB, E130TXAUM, HE130CXAUM, HE130TXAUM 1997
BE40EECR, BE40ELECR, BE40TLECR, E40ELECR, E40RECR, E40RLECR, E40TEECR, E40TELECR, E40TLECR, E40TTLECR 1998
BE40EEDS, BE40ELEDS, BE40TLEDS, E40ELEDS, E40REDS, E40RLEDS, E40TEEDS, E40TELEDS, E40TLEDS, E40TTLEDS, HE40REDS, HE40RLEDS 1996
BE40EEUC, BE40ELEUC, BE40TLEUC, E40ELEUC, E40REUC, E40RLEUC, E40TEEUC, E40TELEUC, E40TLEUC, E40TTLEUC, HE40REUC, HE40RLEUC 1997
BE50BEEDS, BE50BELEDS, BE50TLEDS, E50JEDS, E50TLEDS, SE50TLEDS 1996
BE50DTLEDC, E50DTLEDC, E50ELED 1996
BE50DTLEUR, E50DTLEUR, E50ELEUR 1997
BE50ESECC, BE50RLECR, BE50TLECR, BE50TSLECC, E50ESLECC, E50TLECR, E50TSLECC 1998
BE50RLEUC, BE50TLEUC, BE50TSLEUS, E50ESLEUR, E50JEUC, E50TLEUC, E50TSLEUS 1997
BE60ELEDR, BE60TLEDR, E60ELEDR, E60TLEDR 1996
BE60ELEUA, BE60TLEUA, E60ELEUA, E60TLEUA 1997
BE60TLECM, E60TLECM 1998
BE70ELECB, BE70TLECB, E70TLECB 1998
BE70ELEDA, BE70TLEDA, E70TLEDA, HE70TXEDA 1996
BE70ELEUM, BE70TLEUM, E70TLEUM, HE70TXEUM 1997
E100STLERC 1994
E100WTLEDR, E100WTXEDR 1996
E100WTLEOC, E100WTXEOC 1995
E100WTLERS, E100WTXERS 1994
E100WTLEUA, E100WTXEUA 1997
E112TSLEDR, E112TSXEDR, XE112TSLEDR, XE112TSXEDR 1996
E112TSLEDR, E112TSXEDR, XE112TSLEDR, XE112TSXEDR 1996
E112TSLEOC, E112TSXEOC, XE112TSLEOC, XE112TSXEOC 1995
E112TSLEOC, E112TSXEOC, XE112TSLEOC, XE112TSXEOC 1995
E112TSLERS, E112TSXERS, XE112TSLERS, XE112TSXERS 1994
E115JKLEOC 1995
E115JKLERS 1994
E115JLEOR, E115MLEOR, E115TLEOR, E115TXAOR 1995
E115JLERC, E115MLERS, E115TLERC, E115TXARS 1994
E115JLEUM 1997
E115TSLECM, E115TSXECM, XE115HLECM, XE115HXECM 1998
E115TSLEUA, E115TSXEUA, XE115HLEUA, XE115HXEUA 1997
E120TLERC, E120TLERK, E120TXARC, E120TXARK, E120TXERC, E120TXERK 1994
E125ESXERK 1994
E125WTPLE 1995
E130CXAOR, E130TLEOA, E130TXAOR 1995
E140CXARC, E140CXARK, E140CXERE, E140CXERK, E140TLERK, E140TLERR, E140TXARC, E140TXARK, E140TXERK, E140TXERR 1994
E40EEOD, E40ELEOD, E40REOD, E40RLEOD, E40TEEOD, E40TELEOD, E40TLEOD, E40TTLEOD 1995
E40EERE, E40ELERE, E40RERE, E40RLERE, E40TEERE, E40TELERE, E40TLERE, E40TTLERE 1994
E48ESLEDC 1996
E48ESLEDC 1996
E48ESLEOS 1995
E48ESLEOS 1995
E48ESLERD 1994
E48ESLERD 1994
E50BEEOD, E50BELEOD, E50JEOD, E50TELEOD, E50TLEOD 1995
E50BEERE, E50BELERE, E50JERE, E50TELERE, E50TLERE 1994
E50DTLECA 1998
E50DTLEOS, E50ELEOS 1995
E50TTLECA 1998
E50TTLEDC 1996
E50TTLEOS 1995
E50TTLEUR 1997
E60ELEOC, E60TLEOC 1995
E60ELERS, E60ELERV, E60TLERS, E60TLERV 1994
E60TTLECM 1998
E60TTLEDR 1996
E60TTLEOC 1995
E60TTLERS, E60TTLERV 1994
E60TTLEUA 1997
E65WELEES 1999
E65WELSIR 2001
E65WELSSC 2000
E65WMLEOC 1995
E65WMLERS 1994
E70ELEOR, E70TLEOR 1995
E70ELERC, E70ELERV, E70TLERC, E70TLERV 1994
E70TTLEOR 1995
E70TTLERC, E70TTLERV 1994
E85TTLEOR 1995
E85TTLERC 1994
BE90TLEDA, E88MSLEDC, E90TLEDA, HE88MSLEDC, HE90MLEDA, HE90TXADA 1996
E88MSLEDC, HE88MSLEDC 1996
E88MSLEOS, E90JLEOR, E90MLEOR, E90TLEOR 1995
E88MSLEOS 1995
E88MSLERD, E90JLERC, E90MLERC, E90TLERC, E90TXARC 1994
E88MSLERD 1994
E88TSLEDR, XE88TSLEDR 1996
E88TSLEDR, XE88TSLEDR 1996
E88TSLEOC, XE88TSLEOC 1995
E88TSLEOC, XE88TSLEOC 1995
E88TSLERS, XE88TSLERS 1994
E88TSLERS, XE88TSLERS 1994
E90TSLECM, XE90TSLECM 1998
E90TSLEUA, XE90TSLEUA 1997
HE55WMLM 1996
HE55WMLZ 1997
SE100WMPLM, SE100WTPLM 1996
SE100WMPLZ, SE100WTPLZ 1997
SE125WTPLJ, SE125WTPXJ 1997
SE125WTPLN, SE125WTPXN 1998
SE125WTPLV, SE125WTPXV 1996
SE65WMLD, SE65WMYD 1998
SE65WMLM, SE65WMYM 1996
SE65WMLZ2, SE65WMYZ2 1997
Information:
Probable Causes
Diagnostic codes
Electrical connectors
Fuel supply Air inlet and exhaust system
Throttle signal
Cold mode
Injection actuation pressure
Unit injectorsRecommended Actions
Note: If the symptom only occurs under certain operating conditions (high idle, full load, engine operating temperature, etc.), test the engine under those conditions. Troubleshooting the symptom under other conditions can give misleading results.
Table 1
Troubleshooting Test Steps Values Results
1. Active Codes and Logged Codes
A. Establish communication between Cat Electronic Technician (ET) and the Electronic Control Module (ECM).
B. Monitor the diagnostic codes on Cat ET. Check for active diagnostic codes.
Note: Wait at least 30 seconds in order for diagnostic codes to become active.
Codes
Result: There are active codes.
Repair: Troubleshoot any active diagnostic codes before continuing with this procedure.
There are no active codes
2. Check the condition of the connectors at the ECM.
A. Check for the correct installations of the J2/P2 ECM connectors.
B. Check the J300/P300 injector solenoid harness connector.
Electrical Connectors
Result: There is no problem in the connectors and/or wiring.
Proceed to Test Step 3.
Result: There is a problem in the connectors and/or wiring.
Repair: Refer to the diagnostic functional test Troubleshooting, "Electrical Connectors - Inspect".
3. Fuel Quality
A. Check the fuel lines for the following problems:
- Restrictions
- Collapsed Lines
- Pinched Lines
B. Check the fuel tank for debris or foreign objects which may block the fuel supply.
C. Check for air in the low-pressure fuel supply circuit. Refer to Systems Operation/Testing and Adjusting.
Fuel
Result: The fuel system is operating properly.
Proceed to Test Step 4.
Results: The fuel system is not operating properly.
Repair: Make the necessary repairs.
4. Restriction in the Air Inlet and Exhaust System
A. Check the air filter restriction indicator, if equipped. Clean plugged air filter or replace plugged air filters. Refer to the Operation and Maintenance Manual.
B. Check the air inlet and exhaust system for restrictions and/or leaks.
Restrictions
Result: There are restrictions in the air inlet or exhaust system.
Repair: Make the necessary repairs. Verify that the repair eliminated the problem.
Refer to Systems Operation/Testing and Adjusting.
Result: There are no restrictions in the air inlet or exhaust system.
Proceed to Test Step 5.
5. Throttle Signal
A. Monitor the status for "Throttle Position" on Cat ET.
B. Verify that the status for "Throttle Position" is stable and that the engine is able to reach high idle speed.
Throttle Signal
Result: The throttle signal is stable and 0 percent at low idle and 100 percent at high idle.
Proceed to Test Step 6.
Result: The throttle signal is not stable.
Repair: Make the necessary repair. Refer to the appropriate circuit test.
Verify that the repair eliminated the problem.
6. Cold Mode Operation
During cold mode operation, condensation maybe be present and is normal.
A. Cold mode is activated whenever the engine coolant temperature falls below a predetermined value. Monitor the status screen on Cat ET in order to verify that the engine has exited cold mode. Observe the reading for coolant temperature on Cat ET.
Cold Mode
Result: The engine is operating in cold mode.
Repair: This is normal operation. Return the engine to service.
Result: The engine is not operating in cold mode.
Proceed to Test Step 7.
Injection Actuation Pressure
Note: Refer to the procedure in Special Instruction, REHS3819, "Procedure for Troubleshooting and Cleaning the Oil Rail System for the Hydraulic Electronic Unit Injector". Verify that the repair eliminates the problem.Unit Injectors
Note: Refer to procedure in Special Instruction, REHS3819, "Procedure for Troubleshooting and Cleaning the Oil Rail System for the Hydraulic Electronic Unit Injector". Verify that the repair eliminates the problem.
Diagnostic codes
Electrical connectors
Fuel supply Air inlet and exhaust system
Throttle signal
Cold mode
Injection actuation pressure
Unit injectorsRecommended Actions
Note: If the symptom only occurs under certain operating conditions (high idle, full load, engine operating temperature, etc.), test the engine under those conditions. Troubleshooting the symptom under other conditions can give misleading results.
Table 1
Troubleshooting Test Steps Values Results
1. Active Codes and Logged Codes
A. Establish communication between Cat Electronic Technician (ET) and the Electronic Control Module (ECM).
B. Monitor the diagnostic codes on Cat ET. Check for active diagnostic codes.
Note: Wait at least 30 seconds in order for diagnostic codes to become active.
Codes
Result: There are active codes.
Repair: Troubleshoot any active diagnostic codes before continuing with this procedure.
There are no active codes
2. Check the condition of the connectors at the ECM.
A. Check for the correct installations of the J2/P2 ECM connectors.
B. Check the J300/P300 injector solenoid harness connector.
Electrical Connectors
Result: There is no problem in the connectors and/or wiring.
Proceed to Test Step 3.
Result: There is a problem in the connectors and/or wiring.
Repair: Refer to the diagnostic functional test Troubleshooting, "Electrical Connectors - Inspect".
3. Fuel Quality
A. Check the fuel lines for the following problems:
- Restrictions
- Collapsed Lines
- Pinched Lines
B. Check the fuel tank for debris or foreign objects which may block the fuel supply.
C. Check for air in the low-pressure fuel supply circuit. Refer to Systems Operation/Testing and Adjusting.
Fuel
Result: The fuel system is operating properly.
Proceed to Test Step 4.
Results: The fuel system is not operating properly.
Repair: Make the necessary repairs.
4. Restriction in the Air Inlet and Exhaust System
A. Check the air filter restriction indicator, if equipped. Clean plugged air filter or replace plugged air filters. Refer to the Operation and Maintenance Manual.
B. Check the air inlet and exhaust system for restrictions and/or leaks.
Restrictions
Result: There are restrictions in the air inlet or exhaust system.
Repair: Make the necessary repairs. Verify that the repair eliminated the problem.
Refer to Systems Operation/Testing and Adjusting.
Result: There are no restrictions in the air inlet or exhaust system.
Proceed to Test Step 5.
5. Throttle Signal
A. Monitor the status for "Throttle Position" on Cat ET.
B. Verify that the status for "Throttle Position" is stable and that the engine is able to reach high idle speed.
Throttle Signal
Result: The throttle signal is stable and 0 percent at low idle and 100 percent at high idle.
Proceed to Test Step 6.
Result: The throttle signal is not stable.
Repair: Make the necessary repair. Refer to the appropriate circuit test.
Verify that the repair eliminated the problem.
6. Cold Mode Operation
During cold mode operation, condensation maybe be present and is normal.
A. Cold mode is activated whenever the engine coolant temperature falls below a predetermined value. Monitor the status screen on Cat ET in order to verify that the engine has exited cold mode. Observe the reading for coolant temperature on Cat ET.
Cold Mode
Result: The engine is operating in cold mode.
Repair: This is normal operation. Return the engine to service.
Result: The engine is not operating in cold mode.
Proceed to Test Step 7.
Injection Actuation Pressure
Note: Refer to the procedure in Special Instruction, REHS3819, "Procedure for Troubleshooting and Cleaning the Oil Rail System for the Hydraulic Electronic Unit Injector". Verify that the repair eliminates the problem.Unit Injectors
Note: Refer to procedure in Special Instruction, REHS3819, "Procedure for Troubleshooting and Cleaning the Oil Rail System for the Hydraulic Electronic Unit Injector". Verify that the repair eliminates the problem.
