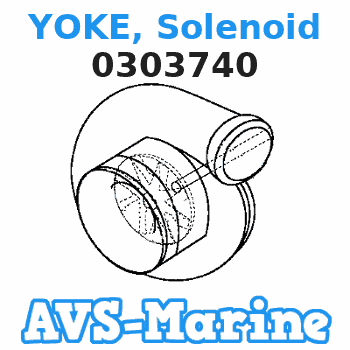

0303740 YOKE, Solenoid EVINRUDE
25202R, 25302A, 25402M, 25502B, 25602E, 25702H, 25802C, 25904R, 33002M, 33802M, 33902A, 35602G, 40102B, E25CNE, E25ECIB, E25ECTD, E25RCSA, E35ECIG, E35ECND, E35ECSM, E35ECTS
YOKE
Price: query
Rating:
You can buy parts:
As an associate, we earn commssions on qualifying purchases through the links below
$34.10
07-07-2024
1.0[0.45] pounds
Amazon.com
Hacus - Forklift FPE262548 GASKET SET - BOTTOM Hacus Aftermarket - New
Hacus HIGH-QUALITY CONSTRUCTION: Made with premium materials; built to withstand the demands of industrial environments; offering excellent resistance to wear; corrosion; and mechanical stress. || VERSATILE COMPATIBILITY: Engineered to fit a wide range of forklift models; making it a versatile choice for various equipment configurations. || SAFETY FIRST - FPE products are ready for use with all certifications. || LEADING THE INDUSTRY - FPE is a leader in forklift products and accessories. We take pride in making the highest quality, premium, reliable forklifts on the market. || All products tested for durability, reliability, and performance.
Hacus HIGH-QUALITY CONSTRUCTION: Made with premium materials; built to withstand the demands of industrial environments; offering excellent resistance to wear; corrosion; and mechanical stress. || VERSATILE COMPATIBILITY: Engineered to fit a wide range of forklift models; making it a versatile choice for various equipment configurations. || SAFETY FIRST - FPE products are ready for use with all certifications. || LEADING THE INDUSTRY - FPE is a leader in forklift products and accessories. We take pride in making the highest quality, premium, reliable forklifts on the market. || All products tested for durability, reliability, and performance.
Number on catalog scheme: 60
Compatible models:
BRP EVINRUDE entire parts catalog list:
- CARBURETOR » 0303740
25402M, 25403M, 25452M, 25453M 1974
25502B, 25503B, 25552B, 25553B 1975
25602E, 25603E, 25652E, 25653E 1976
25702H, 25702S, 25703H, 25703S, 25752H, 25752S, 25753H, 25753S, 35702C, 35702H, 35703C, 35703H, 35752C, 35752H, 35753C, 35753H 1977
25802C, 25803C, 25852C, 25853C, 35802R, 35803R, 35852R, 35853R 1978
25904R, 25905R, 25952R, 25953R, 35902A, 35903A, 35952A, 35953A 1979
33002M, 33003M, 33052M, 33053M 1970
33802M, 33802R, 33803M, 33803R, 33852M, 33852R, 33853M, 33853R 1968
33902A, 33903A, 33952A, 33953A 1969
35602G, 35602S, 35603G, 35603S, 35652G, 35652S, 35653G, 35653S 1976
40102B, 40102G, 40103B, 40103G, 40152B, 40152G, 40153B, 40153G 1971
E25CNE, E25ELCNE, E25RCNB, E25RLCNB, E25TECNB, E25TELCNB 1982
E25ECIB, E25ECIM, E25ELCIB, E25ELCIM, E25RCIM, E25RLCIM, E25TECIM, E25TELCIM 1981
E25ECTD, E25ELCTD, E25RCTE, E25RLCTE, E25TECTE, E25TELCTE 1983
E25RCSA, E25RLCSA, E25TECSA, E25TELCSA 1980
E35ECIG, E35ELCG, E35ELCIG, E35RCIG, E35RLCIG 1981
E35ECND, E35ELCND, E35RCND, E35RLCND, E35TELCNB 1982
E35ECSM, E35ELCSM, E35TCSM, E35TLESM 1980
E35ECTS, E35ELCTS, E35RCTS, E35RLCTS, E35TELCTS 1983
Information:
Table 1
J1939 Code and Description CDL Code and Description Comments
678-3
ECU 8 Volts DC Supply : Voltage Above Normal 41-3
8 Volt DC Supply : Voltage Above Normal The code is logged.
678-4
ECU 8 Volts DC Supply : Voltage Below Normal 41-4
8 Volt DC Supply : Voltage Below Normal The code is logged.
3509-3
Sensor Supply Voltage 1 : Voltage Above Normal 262-3
5 Volt Sensor DC Power Supply : Voltage Above Normal The code is logged.
All sensors are set to default values.
3509-4
Sensor Supply Voltage 1 : Voltage Below Normal 262-4
5 Volt Sensor DC Power Supply : Voltage Below Normal The code is logged.
All sensors are set to default values.
3510-3
Sensor Supply Voltage 2 : Voltage Above Normal 2131-3
5 Volt Sensor DC Power Supply #2 : Voltage Above Normal The code is logged.
Engine power may be derated.
3510-4
Sensor Supply Voltage 2 : Voltage Below Normal 2131-4
5 Volt Sensor DC Power Supply #2 : Voltage Below Normal The code is logged.
Engine power may be derated.
Table 2
Sensor Supply Sensor Supply ECM Location
Sensor Supply #1 Sensors on engine ECM J2 connector
Sensor Supply #2 Sensors on engine ECM J1 connector
Illustration 1 g06349990Recommended Actions
Table 3
Troubleshooting Test Steps Values Results
1. Check for Codes
A. Connect Cat® Electronic Technician (ET) to the service tool connector. Refer to Troubleshooting, "Electronic Service Tools", if necessary.
B. Turn the keyswitch to ON.
C. Determine if a code is present.
Codes
Result: A -3 or -4 code is present.
Proceed to Test Step 2.
Result: A -21 code is present.
Proceed to Test Step 3.
2. Check for a Failed Sensor
A. Connect to Cat ET.
B. Turn the keyswitch to ON.
C. Disconnect a sensor on the suspect sensor supply circuit.
D. Monitor Cat ET while the sensor is disconnected to see if the active code changes to logged.
E. Connect the suspect sensor to the wiring harness
F. Repeat steps C through E for each sensor on the suspect sensor supply.
Failed Sensor
Result: The suspect sensor supply active code changes to logged when a sensor is unplugged.
Repair: Replace the failed sensor.
Verify that the repair resolved the problem.
Result: The suspect sensor supply active code remains active after all sensors on the sensor supply circuit have been checked.
Repair: A failed wiring harness has been detected. Repair or replace the wiring harness.
Verify that the repair resolved the problem.
3. Check the Sensor Supply
A. Turn the keyswitch to OFF.
B. Unplug the suspect sensor from the wiring harness.
C. Place a jumper wire between pin 1 and pin 2 on the suspect sensor wiring harness connector.
D. Connect to Cat ET.
E. Turn the keyswitch to ON.
F. Monitor the codes using Cat ET.
Codes
Result: A -4 code is activated on the suspect sensor supply.
Repair: Remove the sensor. Check the sensor passage for a blockage or obstruction. Also, check for moisture frozen in the lines. If blockage is not found, replace the sensor.
Verify that the repair resolved the problem.
Result: A -4 code is not activated on the suspect sensor supply.
Repair: The problem is in the wiring from the ECM to the sensor connector. Repair the wiring or replace the wiring.
Verify that the repair resolved the problem.
If the procedure did not correct the issue, contact your Cat dealer Technical Communicator (TC). For further assistance, your TC can confer with the Dealer Solutions Network (DSN).
