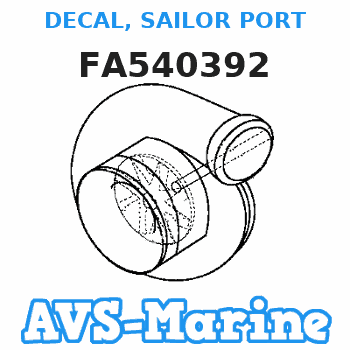

FA540392 Force DECAL, SAILOR PORT


FA540392 DECAL, SAILOR PORT Force H0091H83C, H0091H84D, H0095B81G, H0095H82H DECAL
FA540392 DECAL, SAILOR PORT Force
Rating:
83

Buy DECAL, SAILOR PORT FA540392 Force genuine, new aftermarket parts with delivery
Number on catalog scheme: 50


Compatible models:

Force entire parts catalog list:

H0091H83C 1983
H0091H84D 1984
H0095B81G 1981
H0095H82H 1982

Information:

Problem
Some connecting rod bearings and main bearings that were electroplated in 2009 have the same date codes as bearings that were previously identified as being suspect. This situation has caused confusion and the return of good bearings from the field.The supplier has plated bearings in 2009 that were originally formed and stamped in 2008.The connecting rod and main bearings are manufactured in a two-step process:
The steel back and the aluminum base are formed and the bearing is stamped with the 5XXXX forming code. An example of the forming code is 5UUND.
The bearing is plated with the lead tin overlay and the month of the plating is recorded by the month code. Month codes include "UC", "UB", and "UD".Note: The month code refers to the month that the plating was applied, not the month of the forming.
Illustration 1 g02024049
(1) Year code (2) Month codeRefer to Illustration 1 for the date code that identifies the bearing.Refer to Table 1 and Table 2 for a list of the part numbers of the bearings that are suspect.
Table 1
3500 Affected Bearings.
Part Numbers     Description
107-7330     Connecting Rod Bearing
107-7331     Connecting Rod Bearing
107-7332     Connecting Rod Bearing
107-7333     Connecting Rod Bearing
107-7334     Connecting Rod Bearing
107-7335     Connecting Rod Bearing
230-2520     Connecting Rod Bearing
283-2579     Connecting Rod Bearing
283-2580     Connecting Rod Bearing
283-2581     Connecting Rod Bearing
283-2582     Connecting Rod Bearing
283-2584     Connecting Rod Bearing
149-6031     Main Bearing As
149-6032     Main Bearing
149-6033     Main Bearing
149-6034     Main Bearing
149-6035     Main Bearing
196-9527     Basic Engine Repair Kit
196-9530     Basic Engine Repair Kit
196-9531     Basic Engine Repair Kit
Table 2
G3600 Affected Bearings.
Part Numbers     Description
192-7870     Connecting Rod Bearing    Solution
Bearings with the following markings are approved for use:
Some bearings will have one of the following indicators on the bearings from Morton parts:
Illustration 2 g02024051
(3) Handwritten "2009"
A handwritten "2009" will be present on the back of the bearing. Refer to Illustration 2.
Illustration 3 g02024054
(4) Ink stamped "09"
An ink stamped "09" also located on the back of the bearing. Refer to Illustration 3.
Illustration 4 g02024056
(5) Stamped indicator
A newly manufactured bearing has a stamped indicator of the year that the plating was applied. Refer to Illustration 4.Note: This Technical Information Bulletin only applies to bearings that have a year code of "NO". If the bearings that have a year code of "NO" are not marked with "2009" or "09", the bearings are presumed to be from 2008. Return the 2008 bearings that have a month code of "UG", "UH", "UI", "UJ", "UK", or "UL". Refer to Illustration 1 for examples of the year code and month code.


Parts decal Force:

F286585-1

F286585-1 DECAL, TILT RELEASE (NOT SHOWN)
H0060B76A, H0060B78B, H0060H79C, H0060H80D, H0062B78J, H0062H79K, H0062H79M, H0064H80F, H0064H82H, H0067H79C, H0070B79A, H0071H81B, H0071H82C, H0071H83D, H0071H84E, H0072B81D, H0072H79B, H0072H80C, H0072H82E, H0075H79A, H0082H76G, H0082H78J, H0082H79
F510398

F510398 DECAL, WIRING
H0091B80B, H0091H79A, H0091H83C, H0092H79F, H0092H81H, H0092H81J, H0095B80F, H0095B81G, H0095H82H, H0101B78A, H0102H76C, H0102H78E, H0121B79A, H0122H79E, H0125H79E, H0152B78D, H0152H79E
FA609853

FA609853 DECAL, WARNING
H0071H84E, H0091H84D, H009201RS, H009201SD, H0092284D, H0092H84L, H0092S88A, H0092S91A, H0093S91A, H015201RS, H015211SS, H0152B83J, H0152C84K, H0152S89A, H025201RD, H025201TD, H0357H83N, H040312RD, H040312SD, H0407E92C, H0457H83P, H0503H84B, H0504H88
FA621528

FA621528 DECAL, ENGINE COVER REAR
H0071H83D, H0071H84E, H0091H83C, H0091H84D, H0092H83K, H0092H84L, H0152B83J, H0152C84K
FA311396

FA311396 DECAL-STBD
H0091H84D, H0092284D, H0092H84L, H0092S88A, H0092S91A, H0093S91A, H0152C84K, H0152S89A
FA627397

FA627397 DECAL-PORT
H0091H84D, H0092284D, H0092H84L, H0092S88A, H0092S91A, H0093S91A, H0152C84K, H0152S89A
817985 1

817985 1 DECAL-US MARINE (RED)
H0052C88A, H0091H84D, H0092284D, H0092H84L, H0092S88A, H0092S91A, H0093S91A, H0152C84K, H0152S89A, H0257F88A, H0257F88B, H0352F90B, H0352F90C, H0355D89A, H0356F89B, H0357F89C, H0357G90A, H0504H88C, H0504H88D, H0505C89B, H0507A89C, H0507A89D, H0507A90
FP736396

FP736396 DECAL-STARBOARD
H0091H84D, H0092284D, H0092H84L, H0092S88A, H0092S91A, H0093S91A, H0152C84K, H0152S89A
