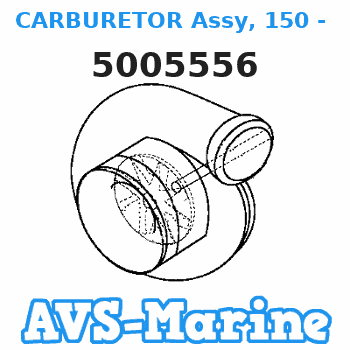

5005556 CARBURETOR Assy, 150 - Port JOHNSON
J150CXSDE, J150CXSOB, J150CXSRM, J150GLSOB, J150GLSRM, J150MLSOR, J150MLSRC, J150PLSOE, J150PLSRB, J150PXSDD, J150PXSOE, J150PXSRB, J175CXSOB, J175CXSRM, J175GLSOB, J175GLSRM, J175MXSOR, J175MXSRC, J175PLSOE, J175PLSRB, J175PXSOE, J175PXSRB
CARBURETOR
Price: query
Rating:
Compatible models:
BRP JOHNSON entire parts catalog list:
- CARBURETOR & INTAKE MANIFOLD » 5005556
J150CXSRM 2004
J150GLSOB 2004,2005
J150GLSRM 2004
J150MLSOR, J150MXSOR 2004,2005
J150MLSRC, J150MXSRC 2004
J150PLSOE 2004,2005
J150PLSRB 2004
J150PXSDD 2006
J150PXSOE 2004,2005
J150PXSRB 2004
J175CXSOB 2004,2005
J175CXSRM 2004
J175GLSOB 2004,2005
J175GLSRM 2004
J175MXSOR 2004,2005
J175MXSRC 2004
J175PLSOE 2004,2005
J175PLSRB 2004
J175PXSOE 2004,2005
J175PXSRB 2004
