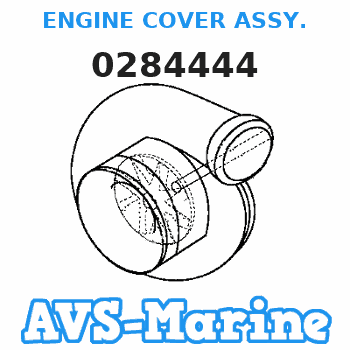

0284444 ENGINE COVER ASSY. JOHNSON
BJ250CXECB, BJ250CXEDA, BJ250CXEUM, J250CXARC, J250CXATF, J250CXEOR, J300CXEOR, J300CXERC, J300CXETF
ENGINE
Price: query
Compatible models:
BRP JOHNSON entire parts catalog list:
- ENGINE COVER -- EVINRUDE » 0284444
BJ250CXEUM, BJ250TXEUM 1997
J250CXARC, J250CXERC, J250CZERC, J250TXARC, J250TXERC, J250TZERC 1994
J250CXATF, J250CXATS, J250CXETF, J250CXETS, J250CZATF, J250CZATS, J250CZETF, J250CZETS, J250TXATF, J250TXATS, J250TXETF, J250TXETS, J250TZATF, J250TZATS, J250TZETF, J250TZETS 1993
J250CXEOR, J250CZEOR, J250TXEOR, J250TZEOR 1995
J300CXEOR, J300PLEOR, J300PXEOR 1995
J300CXERC, J300PLERC, J300PXERC 1994
J300CXETF, J300CXETS, J300PLETF, J300PLETS, J300PXETF, J300PXETS 1993
