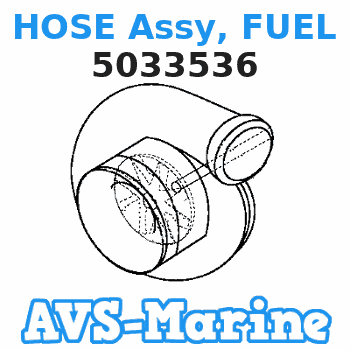

5033536 HOSE Assy, FUEL JOHNSON
BJ115L4SDA, BJ115L4SRC, BJ115L4STS, BJ140CX4DR, BJ140CX4SRS, BJ140L4SDR, BJ140PL4SRS, BJ90PL4SDA, BJ90PL4SRC, BJ90PL4STS, J115PL4SOR, J140CX4SOR, J140CX4STS, J140PL4SOR, J140PL4STS, J140PX4SOR, J90PL4SOR
HOSE
Price: query
Rating:
Compatible models:
BRP JOHNSON entire parts catalog list:
- FUEL INJECTOR » 5033536
BJ115L4STS, BJ115X4STS, J115PL4STS, J115PX4STS 2003
BJ140CX4DR, J140CX4SDA 2006
BJ140CX4SRS, J140CX4SRC 2004
BJ140L4SDR, BJ140X4SDR, J140PL4SDA, J140PX4SDA 2006
BJ140PL4SRS, BJ140PX4SRS, J140PL4SRC, J140PX4SRS 2004
BJ90PL4SDA, BJ90PX4SDA, J90PL4SDA, J90PX4SDA 2006
BJ90PL4SRC, BJ90PX4SRC, J90PL4SRC, J90PX4SRC 2004
BJ90PL4STS, BJ90PX4STS, J90PL4STS, J90PX4STS 2003
J115PL4SOR, J115PX4SOR 2005
J140CX4SOR 2005
J140CX4STS 2003
J140PL4SOR 2005
J140PL4STS, J140PX4STS 2003
J140PX4SOR 2005
J90PL4SOR, J90PX4SOR 2005
Information:
Probable Causes
Diagnostic codes
Electrical connectors
ECM connection
Intake manifold pressure
Fuel supply
Transfer Pump Inlet Regulator (TPIR) flow
Transfer Pump Inlet Regulator (TPIR) return
Electric Fuel Lift Pump (EFLP) flow
Return fuel linesRecommended Actions
Do not crank the engine continuously for more than 30 seconds. Allow the starting motor to cool for two minutes before cranking the engine again.
Note: The procedures have been listed in order of probability. Complete the procedures in order.
Table 1
Troubleshooting Test Steps Values Results
1. Diagnostic Codes
A. Establish communication between the electronic service tool and the Electronic Control Module (ECM). Refer to Troubleshooting, "Electronic Service Tools", if necessary.
B. Download the Warranty Report and the Product Status Report with Histograms before performing any troubleshooting or clearing any diagnostic codes.
Note: The downloaded information will be required by the Dealer Solutions Network (DSN) if troubleshooting assistance is needed.
C. Use the electronic service tool to check for active or logged codes.
Diagnostic codes
Result: There are active or logged codes.
Repair: Troubleshoot any codes before continuing with this procedure.
Result: There are no active or logged codes.
Proceed to Test Step 2.
2. Electrical Connectors
A. Check all electrical connectors for damage. Refer to Troubleshooting, "Electrical Connectors - Inspect".
Make sure that all the connector seals are in place and that the connectors have been correctly installed.
Electrical connectors
Result: An electrical connector is damaged.
Repair: Repair the electrical connector or replace the electrical connector.
Result: A connector seal is displaced or missing or an electrical connector is not correctly installed.
Repair: Repair the electrical connector or replace the electrical connector.
Result: All electrical connectors are OK.
Proceed to Test Step 3.
3. ECM Connection
A. Check that the P2/J2 connector is correctly installed.
Note: If a fault is suspected with the ECM power or ground connections, refer to Troubleshooting, "Electrical Power Supply - Test".
ECM connection
Result: An ECM connector is not correctly installed.
Repair: Repair the electrical connector or replace the electrical connector.
Result: Both ECM connectors are correctly installed.
Proceed to Test Step 4.
4. Intake Manifold Pressure
A. Use the electronic service tool to verify the intake manifold pressure.
Turn the start switch to the ON position.
The intake manifold pressure must read 0 0.5 kPa (0 0.07 psi).
Intake manifold
Result: The intake manifold pressure does not read 0 0.5 kPa (0 0.07 psi).
Repair: Refer to Troubleshooting, "Intake Manifold Air Pressure Is Low".
Result: The intake manifold pressure reads 0 0.5 kPa (0 0.07 psi).
Proceed to Test Step 5.
5. Fuel Supply
A. Visually check the fuel level in the fuel tank. Do not rely on the fuel gauge only.
B. Ensure that the vent in the fuel cap is not filled with debris.
C. Ensure that the fuel supply valve (if equipped) is in the full OPEN position.
D. If the temperature is below 0 °C (32 °F), check for solidified fuel (wax).
E. Check the primary filter/water separator for water in the fuel.
F. Check for fuel supply lines that are restricted.
G. Check that the low-pressure fuel lines are tight and secured properly.
H. Check that the Electric Fuel Lift Pump (EFLP) is operating correctly.
I. Replace the in-line fuel filter that is upstream of the primary fuel filter.
J. Replace the primary and secondary fuel filters.
K. Check the diesel fuel for contamination. Refer to Systems Operation, Testing, and Adjusting, "Fuel Quality - Test".
L. Check for air in the fuel system. Refer to Systems Operation, Testing, and Adjusting, "Air in Fuel - Test".
M. Ensure that the fuel system has been primed. Refer to Systems Operation, Testing, and Adjusting, "Fuel System - Prime".
Fuel system
Result: The fuel supply is not OK.
Repair: Repair the fuel system or replace the fuel system components, as necessary.
Result: The fuel supply is OK.
Proceed to Test Step 6.
Illustration 1 g03750256
Transfer Pump Inlet Regulator (TPIR) components
(1) Transfer Pump Inlet Regulator (TPIR)
(2) TPIR return port
Illustration 2 g02355128
Minimum TPIR flow rate in a 12 VDC system
Illustration 3 g02355130
Minimum TPIR flow rate in a 24 VDC system
Before performing the following fuel system tests, the engine must be run for a minimum of 30 minutes.Note: When performing the following fuel system tests, the Electric Fuel Lift Pump (EFLP) will only operate for 2 minutes unless the engine is running. If necessary, cycle the keyswitch in order to reactivate the pump.
Table 2
Troubleshooting Test Steps Values Results
6. Transfer Pump Inlet Regulator (TPIR) Flow Test
Refer to Illustration 1.
A. Disconnect the TPIR return line from the drain port on the TPIR. Install a suitable blanking cap on the open port in the TPIR return line.
B. Connect a temporary drain line to the drain port on the TPIR.
C. Place the end of the temporary drain line into a suitable calibrated container.
D. With the isolator switch in the ON position but the engine not running, use a suitable multimeter to measure the input voltage to the EFLP. Record the reading.
E. With the isolator switch in the ON position but the engine not running, measure the fuel flow from the temporary drain line.
F. Refer to Illustration 2 or 3for the minimum acceptable flow rate.
G. Remove the temporary drain line from the drain port on the TPIR. Connect the TPIR return line to the TPIR.
TPIR flow rate
Result: The fuel flow is greater than the minimum limit.
Proceed to Test Step 8.
Result: The fuel flow is less than the minimum limit.
Proceed to Test Step 7.
7. Transfer Pump Inlet Regulator (TPIR) Return Test
A. Make sure that the TPIR return line is not blocked or kinked.
B. Check that the Electric Fuel Lift Pump (EFLP) is operating correctly.
C. Make sure that the fuel
Diagnostic codes
Electrical connectors
ECM connection
Intake manifold pressure
Fuel supply
Transfer Pump Inlet Regulator (TPIR) flow
Transfer Pump Inlet Regulator (TPIR) return
Electric Fuel Lift Pump (EFLP) flow
Return fuel linesRecommended Actions
Do not crank the engine continuously for more than 30 seconds. Allow the starting motor to cool for two minutes before cranking the engine again.
Note: The procedures have been listed in order of probability. Complete the procedures in order.
Table 1
Troubleshooting Test Steps Values Results
1. Diagnostic Codes
A. Establish communication between the electronic service tool and the Electronic Control Module (ECM). Refer to Troubleshooting, "Electronic Service Tools", if necessary.
B. Download the Warranty Report and the Product Status Report with Histograms before performing any troubleshooting or clearing any diagnostic codes.
Note: The downloaded information will be required by the Dealer Solutions Network (DSN) if troubleshooting assistance is needed.
C. Use the electronic service tool to check for active or logged codes.
Diagnostic codes
Result: There are active or logged codes.
Repair: Troubleshoot any codes before continuing with this procedure.
Result: There are no active or logged codes.
Proceed to Test Step 2.
2. Electrical Connectors
A. Check all electrical connectors for damage. Refer to Troubleshooting, "Electrical Connectors - Inspect".
Make sure that all the connector seals are in place and that the connectors have been correctly installed.
Electrical connectors
Result: An electrical connector is damaged.
Repair: Repair the electrical connector or replace the electrical connector.
Result: A connector seal is displaced or missing or an electrical connector is not correctly installed.
Repair: Repair the electrical connector or replace the electrical connector.
Result: All electrical connectors are OK.
Proceed to Test Step 3.
3. ECM Connection
A. Check that the P2/J2 connector is correctly installed.
Note: If a fault is suspected with the ECM power or ground connections, refer to Troubleshooting, "Electrical Power Supply - Test".
ECM connection
Result: An ECM connector is not correctly installed.
Repair: Repair the electrical connector or replace the electrical connector.
Result: Both ECM connectors are correctly installed.
Proceed to Test Step 4.
4. Intake Manifold Pressure
A. Use the electronic service tool to verify the intake manifold pressure.
Turn the start switch to the ON position.
The intake manifold pressure must read 0 0.5 kPa (0 0.07 psi).
Intake manifold
Result: The intake manifold pressure does not read 0 0.5 kPa (0 0.07 psi).
Repair: Refer to Troubleshooting, "Intake Manifold Air Pressure Is Low".
Result: The intake manifold pressure reads 0 0.5 kPa (0 0.07 psi).
Proceed to Test Step 5.
5. Fuel Supply
A. Visually check the fuel level in the fuel tank. Do not rely on the fuel gauge only.
B. Ensure that the vent in the fuel cap is not filled with debris.
C. Ensure that the fuel supply valve (if equipped) is in the full OPEN position.
D. If the temperature is below 0 °C (32 °F), check for solidified fuel (wax).
E. Check the primary filter/water separator for water in the fuel.
F. Check for fuel supply lines that are restricted.
G. Check that the low-pressure fuel lines are tight and secured properly.
H. Check that the Electric Fuel Lift Pump (EFLP) is operating correctly.
I. Replace the in-line fuel filter that is upstream of the primary fuel filter.
J. Replace the primary and secondary fuel filters.
K. Check the diesel fuel for contamination. Refer to Systems Operation, Testing, and Adjusting, "Fuel Quality - Test".
L. Check for air in the fuel system. Refer to Systems Operation, Testing, and Adjusting, "Air in Fuel - Test".
M. Ensure that the fuel system has been primed. Refer to Systems Operation, Testing, and Adjusting, "Fuel System - Prime".
Fuel system
Result: The fuel supply is not OK.
Repair: Repair the fuel system or replace the fuel system components, as necessary.
Result: The fuel supply is OK.
Proceed to Test Step 6.
Illustration 1 g03750256
Transfer Pump Inlet Regulator (TPIR) components
(1) Transfer Pump Inlet Regulator (TPIR)
(2) TPIR return port
Illustration 2 g02355128
Minimum TPIR flow rate in a 12 VDC system
Illustration 3 g02355130
Minimum TPIR flow rate in a 24 VDC system
Before performing the following fuel system tests, the engine must be run for a minimum of 30 minutes.Note: When performing the following fuel system tests, the Electric Fuel Lift Pump (EFLP) will only operate for 2 minutes unless the engine is running. If necessary, cycle the keyswitch in order to reactivate the pump.
Table 2
Troubleshooting Test Steps Values Results
6. Transfer Pump Inlet Regulator (TPIR) Flow Test
Refer to Illustration 1.
A. Disconnect the TPIR return line from the drain port on the TPIR. Install a suitable blanking cap on the open port in the TPIR return line.
B. Connect a temporary drain line to the drain port on the TPIR.
C. Place the end of the temporary drain line into a suitable calibrated container.
D. With the isolator switch in the ON position but the engine not running, use a suitable multimeter to measure the input voltage to the EFLP. Record the reading.
E. With the isolator switch in the ON position but the engine not running, measure the fuel flow from the temporary drain line.
F. Refer to Illustration 2 or 3for the minimum acceptable flow rate.
G. Remove the temporary drain line from the drain port on the TPIR. Connect the TPIR return line to the TPIR.
TPIR flow rate
Result: The fuel flow is greater than the minimum limit.
Proceed to Test Step 8.
Result: The fuel flow is less than the minimum limit.
Proceed to Test Step 7.
7. Transfer Pump Inlet Regulator (TPIR) Return Test
A. Make sure that the TPIR return line is not blocked or kinked.
B. Check that the Electric Fuel Lift Pump (EFLP) is operating correctly.
C. Make sure that the fuel
