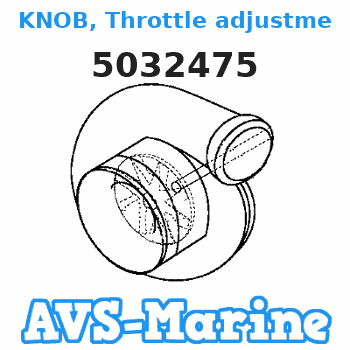

5032475 JOHNSON KNOB, Throttle adjustment


5032475 KNOB, Throttle adjustment JOHNSON J4R4SDA, J4R4SOR, J4R4SRC, J4R4STS, J4R4SUM, J5R4SDA, J5R4SOR, J5R4SRC, J5R4STS, J5R4SUM, J5RLSIM, J6R4SDC, J6R4SOS, J6R4SUR KNOB
5032475 KNOB, Throttle adjustment JOHNSON
Rating:
83

Buy KNOB, Throttle adjustment 5032475 JOHNSON genuine, new aftermarket parts with delivery
Number on catalog scheme: 6


BRP JOHNSON entire parts catalog list:

J4R4SDA, J4RL4SDA 2006
J4R4SOR, J4RL4SOR 2005
J4R4SRC, J4RL4SRC 2004
J4R4STS, J4RL4STS 2003
J4R4SUM, J4RL4SUM 2007
J5R4SDA, J5RL4SDA 2006
J5R4SOR, J5RL4SOR 2005
J5R4SRC, J5RL4SRC 2004
J5R4STS, J5RL4STS 2003
J5R4SUM, J5RL4SUM 2007
J5RLSIM, J5RSIM, J5RVLSIM, J5RVSIM 2001
J6R4SDC, J6RL4SDC 2006
J6R4SOS, J6RL4SOS 2005
J6R4SUR, J6RL4SUR 2007

Information:


Illustration 1 g00892095
Test Step 1. Check for Connector Damage.
Disconnect the main power.
Thoroughly inspect the ECM connector J1/P1. Inspect all of the other connectors. Refer to the diagnostic functional test Troubleshooting, "Inspecting Electrical Connectors" for details.
Perform a 45 N (10 lb) pull test on each of the wires in the ECM connector that are associated with the circuit.
Check the ECM connector (allen head screw) for the proper torque of 6.0 N m (55 lb in).
Check the customer connector (allen head screw) for the proper torque of 2.25 0.25 N m (20 2 lb in).
Check the harness and the wiring for abrasion and pinch points.Expected Result:The connectors and wiring should be free of the following problems: damage, corrosion, abrasion and incorrect attachment.Results:
OK - The connectors and wiring are okay. Proceed to test step 2.
Not OK - The connectors and/or wiring need repair.Repair: Repair the connectors or wiring and/or replace the connectors or wiring.STOPTest Step 2. Check the Switch Status on the Caterpillar Electronic Technician (ET).
Connect the main power.
Start the Cat ET.
Turn the Start/Run/Stop Switch to the STOP position.
Monitor the parameter for the switch on the Cat ET.
Turn the Start/Run/Stop Switch to the START position.
Monitor the parameter for the switch on the Cat ET.
Turn the Start/Run/Stop Switch to the STOP position.Expected Result:The parameter for the switch should read "OFF" when the Start/Run/Stop Switch is turned to the STOP position. The parameter for the switch should read "ON" when the Start/Run/Stop Switch is turned to the START position.Results:
OK - The parameter for the switch is correct in both the STOP and START positions.Repair: The switch is functioning correctly. Reset the system and check for any active diagnostic codes.STOP
Not OK - The parameter for the switch is not correct in either the STOP or the START positions. Proceed to test step 3.Test Step 3. Check the Wiring for an Open Circuit.
Disconnect the main power.
Disconnect the ECM connector J1/P1.
Note the location of the wires on the Start/Run/Stop Switch. Remove the wires from the Start/Run/Stop Switch.
Install a wire jumper between the wire 998-BR and the wires F716-WH and F717-YL at the Start/Run/Stop Switch.
Measure the resistance between P1-29 and P1-8 at ECM connector P1.
Measure the resistance between P1-29 and P1-14 at ECM connector P1.
Reconnect all connectors and all wiring.Expected Result:The resistance should be less than 10 Ohms.Results:
OK - The resistance is less than 10 Ohms for each measurement. Proceed to test step 4.
Not OK - The resistance is more than 10 Ohms. Repair: There is excessive resistance or an open in the wiring between the switch and the ECM connector P1. Repair the connectors or wiring and/or replace the connectors or wiring.STOPTest Step 4. Check The Wiring for a Short Circuit.
Disconnect the main power.
Disconnect the ECM connector J1/P1.
Note the location of the wires on the Start/Run/Stop Switch. Remove the wires from the Start/Run/Stop Switch.
Measure the resistance between P1-29 and P1-8.
Measure the resistance between P1-29 and P1-14.
Measure the resistance between P1-8 and P1-14.
Measure the resistance between P1-8 and engine ground.
Reconnect all connectors and all wiring.Expected Result:The resistance should be greater than 20,000 Ohms for each measurement.Results:
OK - The resistance is greater than 20,000 Ohms. Proceed to test step 5.
Not OK - The resistance is less than 20,000 Ohms.Repair: The wire(s) with the low resistance reading to ground is damaged. Repair the connectors or wiring and/or replace the connectors or wiring.STOPTest Step 5. Check the Start/Run/Stop Switch.
Disconnect the main power.
Disconnect the ECM connector J1/P1.
Note the location of the wires on the Start/Run/Stop Switch. Remove the wires from the Start/Run/Stop Switch.
Ensure that the Start/Run/Stop Switch is not activated.
Measure the resistance between the terminals on the Start/Run/Stop Switch.
Activate the Start/Run/Stop Switch.
Measure the resistance between the terminals on the Start/Run/Stop Switch.
Reconnect all connectors and all wiring.Expected Result:The resistance should be greater than 20,000 Ohms when the Start/Run/Stop Switch is in the STOP position. The resistance should be less than 10 Ohms when the Start/Run/Stop Switch is in the START position.Results:
OK - The resistance measurements are correct. Proceed to test step 6.
Not OK - The resistance measurements are not correct.Repair: Replace the Start/Run/Stop Switch. Reconnect all connectors and wiring. Verify that the problem is no longer present.STOPTest Step 6. Check the ECM.
Disconnect the main power.
Disconnect ECM connector J1/P1.
Remove wire F716-WH from the ECM connector P1-08. Install a wire jumper into the socket for P1-08.
Remove wire F717-YL from the ECM connector P1-14. Install a wire jumper into the socket for P1-14.
Remove wire 998-BR from the ECM connector P1-29. Install a wire jumper into the socket for P1-29.Note: If you remove the sensor common from the ECM an open circuit diagnostic code will be generated for all sensors that use the sensor common. Troubleshoot the original code. Delete the logged diagnostic codes when you are finished.
Reconnect ECM connector J1/P1.
Connect the main power.
Observe the parameter for the switch on the Cat ET.
Disconnect the main power.
Short the wire jumpers from P1-08, P1-14 and P1-29 together.
Connect the main power.
Observe the parameter for the switch on the Cat ET.
Disconnect the main power. Remove the wire jumpers. Reinstall all wires, and reconnect J1/P1.Expected Result:The switch status should read "ON" when the jumpers are shorted together. The switch status should read "OFF" when the jumpers are not shorted together.Results:
OK - The parameter for the Start/Run/Stop Switch displays the proper state. The problem is not with the ECM.Repair: The ECM is receiving the correct signal input. The wiring is okay. The problem may be intermittent. If the problem is intermittent, perfo
