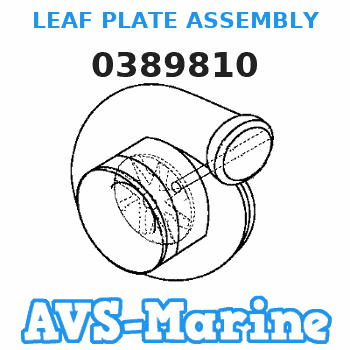

0389810 LEAF PLATE ASSEMBLY JOHNSON
50R79C, 55E79C, BJ40EECR, BJ40EEDS, BJ40EEEA, BJ40EEUC, BJ40ELSIF, BJ40ELSSM, BJ50BEEDS, BJ50EEER, BJ50ELSIF, BJ50ELSSA, BJ50ESECC, BJ50RLEUC, J35AELCDE, J35AELCUD, J40AELCCS, J40ECDE, J40ECEC, J40ECUD, J40EEIA, J40EENJ, J40EEOD, J40EERE, J40EESR, J4
LEAF
Price: query
Rating:
This part in 2 request:
Show.
This information for suppliers only!
#82811 0389810
2021-06-01
#78846 0389810
2020-11-20
Number on catalog scheme: 7
Compatible models:
50R79C
55E79C
BJ40EECR
BJ40EEDS
BJ40EEEA
BJ40EEUC
BJ40ELSIF
BJ40ELSSM
BJ50BEEDS
BJ50EEER
BJ50ELSIF
BJ50ELSSA
BJ50ESECC
BJ50RLEUC
J35AELCDE
J35AELCUD
J40AELCCS
J40ECDE
J40ECEC
J40ECUD
J40EEIA
J40EENJ
J40EEOD
J40EERE
J40EESR
J40EETB
J40PLSNF
J40PLSOC
J40PLSRS
J40PLSTD
J48ESLCCC
J48ESLCER
J48ESLCUS
J48ESLEDC
J48ESLEIM
J48ESLENB
J48ESLEOS
J48ESLERD
J48ESLESA
J48ESLETE
J50BECCS
J50BECDE
J50BECEC
J50BECNR
J50BECOB
J50BECRM
J50BECTA
J50BECUD
J50BEEIA
J50BEENJ
J50BEEOD
J50BEERE
J50BEESR
J50BEETB
J50ECSR
J50PLSNF
J50PLSOC
J50PLSRS
J50PLSTD
J50TELCEC
J55RLCSA
J60ECNM
J60ECSR
J60ECTB
J60ELCOD
J60ELCRE
JOHNSON
BRP JOHNSON entire parts catalog list:
- INTAKE MANIFOLD » 0389810
BJ40EECR, BJ40ELECR, BJ40TLECR, J40ELECR, J40RECR, J40RLECR, J40TEECR, J40TELECR, J40TLECR, J40TTLECR 1998
BJ40EEDS, BJ40ELEDS, BJ40TLEDS, HJ40REDS, HJ40RLEDS, J40ELEDS, J40REDS, J40RLEDS, J40TEEDS, J40TELEDS, J40TLEDS, J40TTLEDS, SJ40EEDS, SJ40REDS, SJ40RLEDS 1996
BJ40EEEA, BJ40ELEEA, BJ40PLEEA, J40PLEEA, J40REEA, J40RLEEA, J40TPLEEA 1999
BJ40EEUC, BJ40ELEUC, BJ40TLEUC, HJ40REUC, HJ40RLEUC, J40ELEUC, J40REUC, J40RLEUC, J40TEEUC, J40TELEUC, J40TLEUC, J40TTLEUC 1997
BJ40ELSIF, BJ40ESIF, BJ40PLSIF, J40PLSIF, J40RLSIF, J40RSIF, J40TPLSIF 2001
BJ40ELSSM, BJ40ESSM, BJ40PLSSM, J40PLSSM, J40RLSSM, J40RSSM, J40TPLSSM 2000
BJ50BEEDS, BJ50BELEDS, BJ50TLEDS, J50JEDS, J50TLEDS 1996
BJ50EEER, BJ50ELEER, BJ50PLEEA, BJ50RLEEA, J50ELEER, J50PLEEA 1999
BJ50ELSIF, BJ50ESIF, BJ50PLSIF, BJ50RLSIF, J50ELSIF, J50PLSIF, RJ50ELSIF 2001
BJ50ELSSA, BJ50ESSA, BJ50PLSSM, BJ50RLSSM, J50ELSSA, J50PLSSM 2000
BJ50ESECC, BJ50RLECR, BJ50TLECR, BJ50TSLECC, J50ESLECC, J50TLECR, J50TSLECC, X50ESLECC 1998
BJ50RLEUC, BJ50TLEUC, BJ50TSLEUS, J50ESLEUR, J50JEUC, J50TLEUC, J50TSLEUS 1997
J35AELCDE, J35ARLCDE 1986
J35AELCUD, J35ARLCUD 1987
J40AELCCS, J40ARLCCS, J40ATLCCS, J40ECCS, J40ELCCS, J40RCCS, J40RLCCS, J40TECCS, J40TELCCS, J40TLCCS, J40TTLCCS 1988
J40ECDE, J40ELCDE, J40RCDE, J40RLCDE, J40TECDE, J40TELCDE, J40TLCDE 1986
J40ECEC, J40ELCEC, J40RCEC, J40RLCEC, J40TECEC, J40TELCEC, J40TLCEC, J40TTLCEC, TJ40ELCEC 1989
J40ECUD, J40ELCUD, J40RCUD, J40RLCUD, J40TECUD, J40TLCUD 1987
J40EEIA, J40ELEIA, J40REIA, J40RLEIA, J40TEEIA, J40TELEIA, J40TLEIA, J40TTLEIA, TJ40ELEIA, VJ40EEIA, VJ40ELEIA, VJ40TELEIA, VJ40TLEIA 1991
J40EENJ, J40EENM, J40ELENJ, J40ELENM, J40RENM, J40RLENM, J40TEENJ, J40TEENM, J40TELENJ, J40TELENM, J40TLENJ, J40TLENM, J40TTLENM, TJ40ELENJ, TJ40ELENM, VJ40EENJ, VJ40EENM, VJ40ELENJ, VJ40ELENM, VJ40TELENJ, VJ40TELENM, VJ40TLENJ, VJ40TLENM 1992
J40EEOD, J40ELEOD, J40REOD, J40RLEOD, J40TEEOD, J40TELEOD, J40TLEOD, J40TTLEOD 1995
J40EERE, J40ELERE, J40RERE, J40RLERE, J40TEERE, J40TELERE, J40TLERE, J40TTLERE 1994
J40EESR, J40ELESR, J40RESR, J40RLESR, J40TEESR, J40TELESR, J40TLESR, J40TTLESR, TJ40ELESF, TJ40ELESR, TJ40TELESF, TJ40TELESR, VJ40EESR, VJ40ELESR, VJ40TELESR, VJ40TLESR 1990
J40EETB, J40ELETB, J40RETB, J40RLETB, J40TEETB, J40TELETB, J40TLETB, J40TLETF, J40TTLETB, J40TTLETF, TJ40ELETB, VJ40EETB, VJ40ELETB, VJ40TELETB, VJ40TLETB, VJ40TLETF 1993
J40PLSNF 2002
J40PLSOC 2005
J40PLSRS 2004
J40PLSTD 2003
J48ESLCCC, VJ48ESLCCC 1988
J48ESLCCC, VJ48ESLCCC 1988
J48ESLCER, VJ48ESLCER 1989
J48ESLCER, VJ48ESLCER 1989
J48ESLCUS 1987
J48ESLCUS 1987
J48ESLEDC 1996
J48ESLEDC 1996
J48ESLEIM 1991
J48ESLEIM 1991
J48ESLENB, VJ48ESLENB 1992
J48ESLENB, VJ48ESLENB 1992
J48ESLEOS 1995
J48ESLEOS 1995
J48ESLERD 1994
J48ESLERD 1994
J48ESLESA, VJ48ESLESA 1990
J48ESLESA, VJ48ESLESA 1990
J48ESLETE, TJ48ESLETE, VJ48ESLETE 1993
J48ESLETE, TJ48ESLETE, VJ48ESLETE 1993
J50BECCS, J50BELCCS, J50TELCCS, J50TLCCS 1988
J50BECDE, J50BELCDE, J50TELCDE, J50TLCDE 1986
J50BECEC, J50BELCEC, J50TLCEC, TJ50TLCEC, TJ50TLESF 1989
J50BECNR, J50BELCNR 1982
J50BECOB, J50BELCOB, J50TELCOB, J50TLCOB 1985
J50BECRM, J50BELCRM, J50TELCRM, J50TLCRM 1984
J50BECTA, J50BELCTA, J50TELCTA 1983
J50BECUD, J50BELCUD, J50TELCUD, J50TLCUD 1987
J50BEEIA, J50BELEIA, J50JEIA, J50TELEIA, J50TLEIA, VJ50BEEIA, VJ50BELEIA, VJ50TLEIA 1991
J50BEENJ, J50BEENM, J50BELENJ, J50BELENM, J50JENJ, J50JENM, J50TELENM, J50TLENJ, J50TLENM, VJ50BEENJ, VJ50BEENM, VJ50BELENJ, VJ50BELENM, VJ50TELENM, VJ50TLENJ, VJ50TLENM 1992
J50BEEOD, J50BELEOD, J50JEOD, J50TELEOD, J50TLEOD 1995
J50BEERE, J50BELERE, J50JERE, J50TELERE, J50TLERE 1994
J50BEESR, J50BELESR, J50TELESR, J50TLESR, TJ50TLESF, TJ50TLESR, VJ50BEESR, VJ50BELESR, VJ50TLESR 1990
J50BEETB, J50BELETB, J50JETB, J50TELETB, J50TLETB, J50TLETF, VJ50BEETB, VJ50BELETB, VJ50TLETB, VJ50TLETF 1993
J50ECSR, J50ELCSR 1980
J50PLSNF 2002
J50PLSOC 2005
J50PLSRS 2004
J50PLSTD 2003
J50TELCEC 1989
J55RLCSA 1980
J60ECNM, J60ELCNM, J60TLCNM 1982
J60ECSR, J60ELCSR 1980
J60ECTB, J60ELCTB, J60TLCTB 1983
J60ELCOD, J60TLCOD 1985
J60ELCRE, J60TLCRE 1984
Information:
Probable Causes
Codes
Starting Aids (if applicable)
Load
Fuel Supply
Battery
Charging Circuit
StarterRecommended Actions
Table 2
Troubleshooting Test Steps Values Results
1. Check for Codes
A. Establish communication between the Cat® Electronic Technician (ET) and the ECM. Refer to Troubleshooting, "Electronic Service Tools", if necessary.
B. Download the "Warranty Report" from the engine ECM before performing any troubleshooting or clearing diagnostic trouble codes.
Codes
Result: An associated diagnostic trouble code is not active or logged.
Proceed to Test Step 2.
Result: An associated code is active or logged.
Repair: Troubleshoot the codes before continuing with this procedure. Refer to the appropriate procedure to troubleshoot the code.
2. Check the Operation of Starting Aids (if applicable)
A. If cold ambient conditions exist, check the operation of the starting aids.
Starting Aids
Result: The starting aid is operating correctly.
Proceed to Test Step 3.
Result: The starting aid is not operating correctly.
Repair: Refer to the appropriate circuit test to troubleshoot the starting aid.
3. Check for Excessive Loads
A. Check for an excessive load on the engine.
B. If necessary, disengage the driven equipment and test the engine.
Excessive Load
Result: The are excessive loads on the engine.
Repair: Reduce the load on the engine. Return the unit to service.
Result: The are not excessive loads on the engine.
Proceed to Test Step 4.
4. Inspect the Fuel Supply
A. Visually check the fuel level in the fuel tank. Do not rely on the fuel gauge only.
B. Ensure that the fuel supply valve (if equipped) is in the full OPEN position.
C. Check the fuel quality.
Note: Make sure that the fuel meets the requirements of Special Publication, SEBU6250, "Caterpillar Machine Fluids Recommendations".
D. Inspect the fuel system.
Note: Refer to Systems Operation/Testing and Adjusting, "Fuel System" for additional information.
Fuel Level
Result: The fuel level is OK.
Proceed to Test Step 5.
Result: The fuel level is not OK.
Repair: Fill the tank.
If necessary, add fuel. If the engine has been run out of fuel, purge the air from the fuel system.
5. Check for a Worn Battery
A. Verify that the battery is no longer able to hold a charge. Refer to Systems Operation/Testing and Adjusting for the correct procedure.
Battery
Result: The battery will no longer hold a charge.
Repair: Replace the battery. Refer to Disassembly and Assembly for the correct procedure.
Result: The battery will hold a charge.
Proceed to Test Step 6.
6. Check for a Switched Battery Circuit
A. Inspect the battery cables, wiring, and connections in the charging circuit.
B. Verify that a switched battery circuit drained the battery by being left in the ON position.
C. Charge the battery. Verify that the battery is able to maintain a charge. Refer to Systems Operation/Testing and Adjusting for the correct procedure.
Battery Circuit
Result: The battery circuit is OK.
Proceed to Test Step 7.
Result: The battery circuit is not OK.
Repair: Clean all connections and tighten all connections. Replace any faulty parts, if necessary.
7. Inspect the Alternator
A. Inspect the condition of the alternator. Refer to Troubleshooting, "Alternator Problem" for the correct procedure.
Alternator
Result: The condition of the alternator is OK.
Proceed to Test Step 8.
Result: The condition of the alternator is not OK.
Repair: Replace or repair the alternator.
8. Inspect the Starter Engagement
A. Attempt to start the engine while you observe the status of the relay for the starting motor on Caterpillar Electronic Technician.
Starter Engagement
Result: The relay for the starting motor indicates that the engine should crank but no cranking occurs.
Repair: Troubleshoot the starting circuit.
Result: The relay for the starting motor indicates that the engine should crank and cranking occurs.
Proceed to Test Step 9.
9. Check the Crank Cycle
Note: A maximum of one crank cycle per overcrank is recommended.
A. Make sure that the engine can be cranked for enough time.
Crank Cycle
Result: The engine cannot be cranked for enough time.
Repair: Use Cat ET to check the "Cycle Crank Time" and the "Overcrank Time" parameters. Remember that the purge cycle is part of the total crank cycle. Reprogram the parameters, if necessary.
If this procedure did not correct the issue, contact your Cat dealer Technical Communicator (TC). For further assistance, your TC can confer with the Dealer Solution Network (DSN).
Codes
Starting Aids (if applicable)
Load
Fuel Supply
Battery
Charging Circuit
StarterRecommended Actions
Table 2
Troubleshooting Test Steps Values Results
1. Check for Codes
A. Establish communication between the Cat® Electronic Technician (ET) and the ECM. Refer to Troubleshooting, "Electronic Service Tools", if necessary.
B. Download the "Warranty Report" from the engine ECM before performing any troubleshooting or clearing diagnostic trouble codes.
Codes
Result: An associated diagnostic trouble code is not active or logged.
Proceed to Test Step 2.
Result: An associated code is active or logged.
Repair: Troubleshoot the codes before continuing with this procedure. Refer to the appropriate procedure to troubleshoot the code.
2. Check the Operation of Starting Aids (if applicable)
A. If cold ambient conditions exist, check the operation of the starting aids.
Starting Aids
Result: The starting aid is operating correctly.
Proceed to Test Step 3.
Result: The starting aid is not operating correctly.
Repair: Refer to the appropriate circuit test to troubleshoot the starting aid.
3. Check for Excessive Loads
A. Check for an excessive load on the engine.
B. If necessary, disengage the driven equipment and test the engine.
Excessive Load
Result: The are excessive loads on the engine.
Repair: Reduce the load on the engine. Return the unit to service.
Result: The are not excessive loads on the engine.
Proceed to Test Step 4.
4. Inspect the Fuel Supply
A. Visually check the fuel level in the fuel tank. Do not rely on the fuel gauge only.
B. Ensure that the fuel supply valve (if equipped) is in the full OPEN position.
C. Check the fuel quality.
Note: Make sure that the fuel meets the requirements of Special Publication, SEBU6250, "Caterpillar Machine Fluids Recommendations".
D. Inspect the fuel system.
Note: Refer to Systems Operation/Testing and Adjusting, "Fuel System" for additional information.
Fuel Level
Result: The fuel level is OK.
Proceed to Test Step 5.
Result: The fuel level is not OK.
Repair: Fill the tank.
If necessary, add fuel. If the engine has been run out of fuel, purge the air from the fuel system.
5. Check for a Worn Battery
A. Verify that the battery is no longer able to hold a charge. Refer to Systems Operation/Testing and Adjusting for the correct procedure.
Battery
Result: The battery will no longer hold a charge.
Repair: Replace the battery. Refer to Disassembly and Assembly for the correct procedure.
Result: The battery will hold a charge.
Proceed to Test Step 6.
6. Check for a Switched Battery Circuit
A. Inspect the battery cables, wiring, and connections in the charging circuit.
B. Verify that a switched battery circuit drained the battery by being left in the ON position.
C. Charge the battery. Verify that the battery is able to maintain a charge. Refer to Systems Operation/Testing and Adjusting for the correct procedure.
Battery Circuit
Result: The battery circuit is OK.
Proceed to Test Step 7.
Result: The battery circuit is not OK.
Repair: Clean all connections and tighten all connections. Replace any faulty parts, if necessary.
7. Inspect the Alternator
A. Inspect the condition of the alternator. Refer to Troubleshooting, "Alternator Problem" for the correct procedure.
Alternator
Result: The condition of the alternator is OK.
Proceed to Test Step 8.
Result: The condition of the alternator is not OK.
Repair: Replace or repair the alternator.
8. Inspect the Starter Engagement
A. Attempt to start the engine while you observe the status of the relay for the starting motor on Caterpillar Electronic Technician.
Starter Engagement
Result: The relay for the starting motor indicates that the engine should crank but no cranking occurs.
Repair: Troubleshoot the starting circuit.
Result: The relay for the starting motor indicates that the engine should crank and cranking occurs.
Proceed to Test Step 9.
9. Check the Crank Cycle
Note: A maximum of one crank cycle per overcrank is recommended.
A. Make sure that the engine can be cranked for enough time.
Crank Cycle
Result: The engine cannot be cranked for enough time.
Repair: Use Cat ET to check the "Cycle Crank Time" and the "Overcrank Time" parameters. Remember that the purge cycle is part of the total crank cycle. Reprogram the parameters, if necessary.
If this procedure did not correct the issue, contact your Cat dealer Technical Communicator (TC). For further assistance, your TC can confer with the Dealer Solution Network (DSN).
