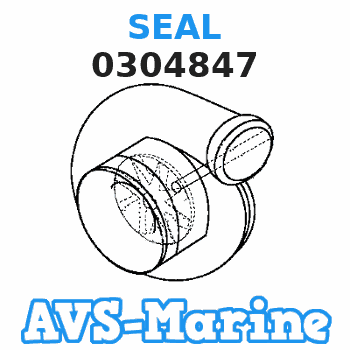

0304847 SEAL JOHNSON
25E72R, 25E73A, 25E74M, 25E75B, 25E76E, 25E77S, 25E78C, 25E79R, 33E69A, 33E69A, 33E70M, 33E70M, 35E76G, 35E77C, 35E78R, 35E79A, 40E69R, 40E70A, 40E71B, 40E72E, 40E73D, 40E74S, 40E75C, 40E76A, 40ES69R, 40ES70A, BJ20SEECB, BJ20SEEDA, BJ20SEEUM, BJ25EEC
SEAL
Price: query
Rating:
Compatible models:
25E72R
25E73A
25E74M
25E75B
25E76E
25E77S
25E78C
25E79R
33E69A
33E70M
35E76G
35E77C
35E78R
35E79A
40E69R
40E70A
40E71B
40E72E
40E73D
40E74S
40E75C
40E76A
40ES69R
40ES70A
BJ20SEECB
BJ20SEEDA
BJ20SEEUM
BJ25EECE
BJ25EEDM
BJ25EEED
BJ25EEUB
BJ25ELSIC
BJ25ELSSS
BJ30EECS
BJ30EEDE
BJ30EEEC
BJ30EEUD
BJ30ELSIA
BJ30ELSSR
HJ25TELEDA
J20CRCCA
J20CRCDC
J20CRCOS
J20CRCUR
J20ECEM
J20EEIE
J20EEND
J20EEOR
J20EERC
J20EESB
J20EETS
J25ECCM
J25ECDR
J25ECEB
J25ECIB
J25ECNE
J25ECOC
J25ECRS
J25ECTD
J25ECUA
J25EEID
J25EENS
J25EEOA
J25EERR
J25EESE
J25EETC
J25ELSNF
J25ELSOB
J25ELSRM
J25ELSTA
J25GTESOC
J25GTESRS
J25RCSA
J25TECEM
J25TEECB
J25TEEEE
J25TEEIE
J25TEEND
J25TEEOR
J25TEERC
J25TEESB
J25TEETS
J25TEEUM
J25TELERC
J25TELSIS
J25TELSNF
J25TELSSD
J25TELSTR
J28ELCDS
J28ESLCCR
J28ESLCEA
J28ESLCUC
J28ESLEDR
J28ESLEIB
J28ESLENE
J28ESLEOC
J28ESLERS
J28ESLESM
J28ESLETD
J30ECCE
J30ECDM
J30ECED
J30ECOA
J30ECRR
J30ECUB
J30EEIC
J30EENR
J30EEOB
J30EERM
J30EESS
J30EETA
J30ELSNF
J30ELSOD
J30ELSRE
J30ELSTB
J30TECED
J30TEECS
J30TEEDE
J30TEEIC
J30TEENR
J30TEEOB
J30TEERM
J30TEESS
J30TEETA
J30TEEUD
J35ECIG
J35ECND
J35ECRR
J35ECSM
J35ECTS
J35RCCE
J35RCDM
J35RCUB
RDS-30A
RK-30A
RX-16M
TJ30ELESS
JOHNSON
BRP JOHNSON entire parts catalog list:
- CYLINDER AND CRANKCASE » 0304847
25E74M, 25EL74M, 25R74M, 25RL74M 1974
25E75B, 25EL75B, 25R75B, 25RL75B 1975
25E76E, 25EL76E, 25R76E, 25RL76E 1976
25E77S, 25EL77H, 25EL77S, 25R77H, 25R77S, 25RL77H, 25RL77S 1977
25E78C, 25EL78C, 25R78C, 25RL78C 1978
25E79R, 25EL79R, 25R79R, 25RL79R 1979
33E69A, 33EL69A, 33R69A, 33RL69A 1969
33E69A, 33EL69A, 33R69A, 33RL69A 1969
33E70M, 33EL70M, 33R70M, 33RL70M 1970
33E70M, 33EL70M, 33R70M, 33RL70M 1970
35E76G, 35E76S, 35EL76G, 35EL76S, 35R76G, 35R76S, 35RL76G, 35RL76S 1976
35E77C, 35E77H, 35EL77C, 35EL77H, 35R77C, 35R77H, 35RL77C, 35RL77H 1977
35E78R, 35EL78R, 35R78R, 35RL78R 1978
35E79A, 35EL79A, 35R79A, 35RL79A 1979
40E69R, 40EL69R 1969
40E70A, 40EL70A 1970
40E71B, 40E71G, 40EL71B, 40EL71G, 40R71B, 40R71G, 40RL71B, 40RL71G 1971
40E72E, 40EL72E, 40R72E, 40RL72E 1972
40E73D, 40EL73D, 40R73D, 40RL73D 1973
40E74S, 40EL74S, 40R74S, 40RL74S 1974
40E75C, 40EL75C, 40R75C, 40RL75C 1975
40E76A, 40E76R, 40EL76A, 40EL76R, 40R76A, 40R76R, 40RL76A, 40RL76R 1976
40ES69R, 40ESL69R 1969
40ES70A, 40ESL70A 1970
BJ20SEECB, BJ20SELECB 1998
BJ20SEEDA, BJ20SELEDA 1996
BJ20SEEUM, BJ20SELEUM 1997
BJ25EECE, BJ25ELECE, J25EECE, J25ELECE 1998
BJ25EEDM, BJ25ELEDM, BJ25EREDC, BJ25ERLEDC, J25EEDM, J25ELEDM 1996
BJ25EEED, BJ25EEEN, BJ25ELEED, BJ25ELEEN, J25EEED, J25EEEN, J25ELEED, J25ELEEN 1999
BJ25EEUB, BJ25ELEUB, J25EEUB, J25ELEUB 1997
BJ25ELSIC, BJ25ESIC, BJ25EVLSIC, BJ25EVSIC, J25ELSIC, J25ESIC, J25EVLSIC, J25EVSIC 2001
BJ25ELSSS, BJ25ESSS, J25ELSSS, J25ESSS 2000
BJ30EECS, BJ30ELECS, J30EECS, J30ELECS 1998
BJ30EEDE, BJ30ELEDE, J30EEDE, J30ELEDE, SJ30EEDE 1996
BJ30EEEC, BJ30EEEN, BJ30ELEEC, BJ30ELEEN, J30EEEC, J30EEEN, J30ELEEC, J30ELEEN 1999
BJ30EEUD, BJ30ELEUD, J30EEUD, J30ELEUD 1997
BJ30ELSIA, BJ30ESIA, BJ30EVLSIA, BJ30EVSIA, J30ELSIA, J30ESIA, J30EVLSIA 2001
BJ30ELSSR, BJ30ESSR, J30ELSSR, J30ESSR 2000
HJ25TELEDA, J25TEEDA, J25TELEDA, SJ25TEEDA 1996
J20CRCCA, J20CRLCCA, J20ECCA, J20ELCCA 1988
J20CRCDC, J20CRLCDC, J20ECDC, J20ELCDC, J20TECDC 1986
J20CRCOS, J20CRLCOS, J20ECOS, J20ELCOS 1985
J20CRCUR, J20CRLCUR, J20ECUR, J20ELCUR 1987
J20ECEM, J20ELCEM 1989
J20EEIE, J20ELEIE 1991
J20EEND, J20ELEND 1992
J20EEOR, J20ELEOR 1995
J20EERC, J20ELERC 1994
J20EESB, J20ELESB 1990
J20EETS, J20ELETS 1993
J25ECCM, J25ELCCM, J25RCCA, J25RLCCA, J25TECCA, J25TELCCA 1988
J25ECDR, J25ELCDR, J25RCDC, J25RDC, J25RLCDC, J25TECDC, J25TELCDC 1986
J25ECEB, J25ELCEB, TJ25ELCEB, TJ25ELESF 1989
J25ECIB, J25ECIM, J25ELCIB, J25ELCIM, J25RCIM, J25RLCIM, J25TECIM, J25TELCIM 1981
J25ECNE, J25ELCNE, J25RCNB, J25RELCNB, J25RLCNB, J25TECNB 1982
J25ECOC, J25ELCOC, J25RCOS, J25RLCOS, J25TECOS, J25TELCOS 1985
J25ECRS, J25ELCRS, J25RCRD, J25RLCRD, J25TECRD, J25TELCRD 1984
J25ECTD, J25ELCTD, J25RCTE, J25RLCTE, J25TECTE, J25TELCTE 1983
J25ECUA, J25ELCUA, J25RCUR, J25RLCUR, J25TECUR, J25TELCUR 1987
J25EEID, J25ELEID, TJ25ELEID, VJ25ELEID 1991
J25EENS, J25ELENS, TJ25ELENS, VJ25ELENS 1992
J25EEOA, J25ELEOA 1995
J25EERR, J25ELERR 1994
J25EESE, J25ELESE, TJ25ELESE, VJ25ELESE 1990
J25EETC, J25ELETC, TJ25ELETC, VJ25ELETC 1993
J25ELSNF 2002
J25ELSOB 2005
J25ELSRM 2004
J25ELSTA 2003
J25GTESOC, J25TELSOM, J25TESOM 2005
J25GTESRS, J25TELSRA, J25TESRA 2004
J25RCSA, J25RLCSA, J25TECSA, J25TELCSA 1980
J25TECEM, J25TELCEM 1989
J25TEECB, J25TELECB 1998
J25TEEEE, J25TEEEN, J25TELEEE, J25TELEEN 1999
J25TEEIE, J25TELEIE 1991
J25TEEND, J25TELEND 1992
J25TEEOR, J25TELEOR 1995
J25TEERC 1994
J25TEESB, J25TELESB 1990
J25TEETS, J25TELETS 1993
J25TEEUM, J25TELEUM, SJ25TEEUM 1997
J25TELERC 1994
J25TELSIS, J25TESIS, J25TVLSIS, J25TVSIS 2001
J25TELSNF, J25TESNF 2002
J25TELSSD, J25TESSD 2000
J25TELSTR, J25TESTR 2003
J28ELCDS 1986
J28ELCDS 1986
J28ESLCCR, VJ28ESLCCR 1988
J28ESLCCR, VJ28ESLCCR 1988
J28ESLCEA, VJ28ESLCEA 1989
J28ESLCEA, VJ28ESLCEA 1989
J28ESLCUC 1987
J28ESLCUC 1987
J28ESLEDR 1996
J28ESLEDR 1996
J28ESLEIB 1991
J28ESLEIB 1991
J28ESLENE 1992
J28ESLENE 1992
J28ESLEOC 1995
J28ESLEOC 1995
J28ESLERS 1994
J28ESLERS 1994
J28ESLESM, VJ28ESLESM 1990
J28ESLESM, VJ28ESLESM 1990
J28ESLETD 1993
J28ESLETD 1993
J30ECCE, J30ELCCE, J30RCCE, J30RLCCE, J30TECCE, J30TELCCE 1988
J30ECDM, J30ELCDM, J30RCDM, J30RLCDM, J30TECDM, J30TELCDM 1986
J30ECED, J30ELCED, TJ30ELCED, TJ30ELESF 1989
Information:
Probable Causes
Diagnostic codes
ECM Flash file
Glow plugs
Coolant temperature
Cooling system
Fuel quality
Valve lash
Low compression (cylinder pressure)
Electronic unit injectors
Individual malfunctioning cylinderRecommended Actions
Table 1
Troubleshooting Test Steps Values Results
1. Diagnostic Codes
A. Establish communication between the electronic service tool and the Electronic Control Module (ECM) . Refer to Troubleshooting, "Electronic Service Tools", if necessary.
B. Download the Warranty Report and the Product Status Report with Histograms before performing any troubleshooting or clearing any diagnostic codes.
Note: The downloaded information will be required by the Dealer Solutions Network (DSN) if troubleshooting assistance is needed.
C. Determine if a code is active or logged.
Diagnostic codes
Result: A code is active or logged.
Repair: Troubleshoot any active codes before continuing with this procedure.
Result: A code is not active or logged.
Proceed to Test Step 2.
2. ECM Flash File
A. Verify that the latest flash file is installed in the ECM.
Flash file
Result: The latest flash file is not installed.
Repair: Install the latest flash file. Refer to Troubleshooting, "ECM Software - Install" for the correct procedure. Verify that the repair eliminates the fault.
Result: The latest flash file is installed.
Proceed to Test Step 3.
3. Glow Plugs
Note: Faulty glow plugs will only affect the production of white smoke when the ambient temperature is between 5° C (41° F) and −25° C (−13° F).
A. Check operation of glow plugs. Verify that the glow plugs are operating correctly. Refer to Troubleshooting, "Glow Plug Starting Aid - Test".
B. Check the configuration screen on the electronic service tool to verify that ether injection is not enabled.
Glow plugs
Result: The glow plugs are not operating correctly.
Repair: Make the necessary repairs. Verify that the repair corrected the fault.
Result: The glow plugs are operating correctly.
Proceed to Test Step 4.
4. Coolant Temperature
A. Check that the water temperature regulator is operating correctly. Refer to Systems Operation, Testing, and Adjusting, "Water Temperature Regulator - Test".
Coolant temperature
Result: The water temperature regulator is not operating correctly.
Repair: Replace the water temperature regulator. Verify that the repair corrected the fault.
Result: The water temperature regulator is operating correctly.
Proceed to Test Step 5.
5. Cooling System
A. Check for an internal coolant leak into the cylinder and/or the exhaust. Refer to Systems Operation/Testing and Adjusting, "Cooling System".
Internal coolant leak
Result: There is an internal coolant leak.
Repair: Make the necessary repairs. Verify that the repair eliminated the fault.
Result: There is not an internal coolant leak.
Proceed to Test Step 6.
6. Fuel Quality
A. Check the fuel quality. Refer to Systems Operation, Testing, and Adjusting, "Fuel Quality - Test".
B. Refer to Operation and Maintenance Manual for information on the proper characteristics of the fuel for the engine.
Fuel
Result: The fuel quality is not OK.
Repair: Drain the fuel system and replace the fuel filters. Refer to the Operation and Maintenance Manual, "Fuel System Primary Filter (Water Separator) Element - Replace" and Operation and Maintenance Manual, "Fuel System Filter - Replace".
Fill the fuel system with fuel that meets the standard in the Operation and Maintenance Manual, "Fluid Recommendations".
Prime the fuel system. Refer to the Operation and Maintenance Manual, "Fuel System - Prime".
Result: The fuel quality is OK.
Proceed to Test Step 7.
7. Valve Lash
Note: The valve lash can affect the performance of the engine.
A. Check the valve lash.
Valve lash
Result: The valve lash is not set correctly.
Repair: Check the valve lash. Refer to Systems Operation, Testing, and Adjusting, "Engine Valve Lash - Inspect" for the correct procedure.
Result: The valve lash is correct.
Proceed to Test Step 8.
8. Low Compression (Cylinder Pressure)
A. Perform a compression test. Refer to Systems Operation, Testing, and Adjusting, "Compression - Test".
Cylinder compression
Result: The results of the compression test are outside the specifications.
Repair: Investigate the cause and rectify any faults.
Note: Possible causes of low compression are shown in the following list:
Loose glow plugs
Faulty piston
Faulty piston rings
Worn cylinder bores
Worn valves
Faulty cylinder head gasket
Damaged cylinder head
Result: The results of the compression test are OK.
Proceed to Test Step 9.
9. Electronic Unit Injectors
A. Use the electronic service tool to perform the automatic "Cylinder Cut Out Test".
Note: If the compression test that was performed in Test Step 9 was satisfactory, the "Cylinder Cut Out Test" will identify any faulty injectors.
Electronic Unit Injectors
Result: A faulty injector is indicated.
Repair: Remove any faulty electronic unit injectors. Refer to Disassembly and Assembly, "Electronic Unit Injector - Remove".
Install new electronic unit injectors. Refer to Disassembly and Assembly, "Electronic Unit Injector - Install".
Repeat the automatic "Cylinder Cut Out Test". If the fault is still apparent, remove the replacement electronic unit injector and install the original electronic unit injector. Refer to Disassembly and Assembly, "Electronic Unit Injector - Remove" and Disassembly and Assembly, "Electronic Unit Injector - Install".
Result: All injectors are OK.
Proceed to Test Step 10.
10. Individual Malfunctioning Cylinders
A. With the engine speed at a fast idle, use the electronic service tool to perform the manual "Cylinder Cut Out Test".
As each cylinder is cut out, listen for a change in the sound from the engine. When a cylinder is cut out, there should be a noticeable change in the sound of the engine.
Note: If a change in the sound of the engine is not noted, the isolated cylinder is not operating under normal conditions. If the isolation of a cylinder results in a change in the sound that is less noticeable, the cylinder may be operating below normal performance.
Cylinders
Result: The test indicates a faulty cylinder.
Repair: Investigate the cause of the fault on any cylinder that is not operating. Investigate the cause of the fault on any cylinder that is operating below normal performance.
Result: The test indicates that all cylinders are OK.
Contact the Dealer Solutions Network (DSN).
Diagnostic codes
ECM Flash file
Glow plugs
Coolant temperature
Cooling system
Fuel quality
Valve lash
Low compression (cylinder pressure)
Electronic unit injectors
Individual malfunctioning cylinderRecommended Actions
Table 1
Troubleshooting Test Steps Values Results
1. Diagnostic Codes
A. Establish communication between the electronic service tool and the Electronic Control Module (ECM) . Refer to Troubleshooting, "Electronic Service Tools", if necessary.
B. Download the Warranty Report and the Product Status Report with Histograms before performing any troubleshooting or clearing any diagnostic codes.
Note: The downloaded information will be required by the Dealer Solutions Network (DSN) if troubleshooting assistance is needed.
C. Determine if a code is active or logged.
Diagnostic codes
Result: A code is active or logged.
Repair: Troubleshoot any active codes before continuing with this procedure.
Result: A code is not active or logged.
Proceed to Test Step 2.
2. ECM Flash File
A. Verify that the latest flash file is installed in the ECM.
Flash file
Result: The latest flash file is not installed.
Repair: Install the latest flash file. Refer to Troubleshooting, "ECM Software - Install" for the correct procedure. Verify that the repair eliminates the fault.
Result: The latest flash file is installed.
Proceed to Test Step 3.
3. Glow Plugs
Note: Faulty glow plugs will only affect the production of white smoke when the ambient temperature is between 5° C (41° F) and −25° C (−13° F).
A. Check operation of glow plugs. Verify that the glow plugs are operating correctly. Refer to Troubleshooting, "Glow Plug Starting Aid - Test".
B. Check the configuration screen on the electronic service tool to verify that ether injection is not enabled.
Glow plugs
Result: The glow plugs are not operating correctly.
Repair: Make the necessary repairs. Verify that the repair corrected the fault.
Result: The glow plugs are operating correctly.
Proceed to Test Step 4.
4. Coolant Temperature
A. Check that the water temperature regulator is operating correctly. Refer to Systems Operation, Testing, and Adjusting, "Water Temperature Regulator - Test".
Coolant temperature
Result: The water temperature regulator is not operating correctly.
Repair: Replace the water temperature regulator. Verify that the repair corrected the fault.
Result: The water temperature regulator is operating correctly.
Proceed to Test Step 5.
5. Cooling System
A. Check for an internal coolant leak into the cylinder and/or the exhaust. Refer to Systems Operation/Testing and Adjusting, "Cooling System".
Internal coolant leak
Result: There is an internal coolant leak.
Repair: Make the necessary repairs. Verify that the repair eliminated the fault.
Result: There is not an internal coolant leak.
Proceed to Test Step 6.
6. Fuel Quality
A. Check the fuel quality. Refer to Systems Operation, Testing, and Adjusting, "Fuel Quality - Test".
B. Refer to Operation and Maintenance Manual for information on the proper characteristics of the fuel for the engine.
Fuel
Result: The fuel quality is not OK.
Repair: Drain the fuel system and replace the fuel filters. Refer to the Operation and Maintenance Manual, "Fuel System Primary Filter (Water Separator) Element - Replace" and Operation and Maintenance Manual, "Fuel System Filter - Replace".
Fill the fuel system with fuel that meets the standard in the Operation and Maintenance Manual, "Fluid Recommendations".
Prime the fuel system. Refer to the Operation and Maintenance Manual, "Fuel System - Prime".
Result: The fuel quality is OK.
Proceed to Test Step 7.
7. Valve Lash
Note: The valve lash can affect the performance of the engine.
A. Check the valve lash.
Valve lash
Result: The valve lash is not set correctly.
Repair: Check the valve lash. Refer to Systems Operation, Testing, and Adjusting, "Engine Valve Lash - Inspect" for the correct procedure.
Result: The valve lash is correct.
Proceed to Test Step 8.
8. Low Compression (Cylinder Pressure)
A. Perform a compression test. Refer to Systems Operation, Testing, and Adjusting, "Compression - Test".
Cylinder compression
Result: The results of the compression test are outside the specifications.
Repair: Investigate the cause and rectify any faults.
Note: Possible causes of low compression are shown in the following list:
Loose glow plugs
Faulty piston
Faulty piston rings
Worn cylinder bores
Worn valves
Faulty cylinder head gasket
Damaged cylinder head
Result: The results of the compression test are OK.
Proceed to Test Step 9.
9. Electronic Unit Injectors
A. Use the electronic service tool to perform the automatic "Cylinder Cut Out Test".
Note: If the compression test that was performed in Test Step 9 was satisfactory, the "Cylinder Cut Out Test" will identify any faulty injectors.
Electronic Unit Injectors
Result: A faulty injector is indicated.
Repair: Remove any faulty electronic unit injectors. Refer to Disassembly and Assembly, "Electronic Unit Injector - Remove".
Install new electronic unit injectors. Refer to Disassembly and Assembly, "Electronic Unit Injector - Install".
Repeat the automatic "Cylinder Cut Out Test". If the fault is still apparent, remove the replacement electronic unit injector and install the original electronic unit injector. Refer to Disassembly and Assembly, "Electronic Unit Injector - Remove" and Disassembly and Assembly, "Electronic Unit Injector - Install".
Result: All injectors are OK.
Proceed to Test Step 10.
10. Individual Malfunctioning Cylinders
A. With the engine speed at a fast idle, use the electronic service tool to perform the manual "Cylinder Cut Out Test".
As each cylinder is cut out, listen for a change in the sound from the engine. When a cylinder is cut out, there should be a noticeable change in the sound of the engine.
Note: If a change in the sound of the engine is not noted, the isolated cylinder is not operating under normal conditions. If the isolation of a cylinder results in a change in the sound that is less noticeable, the cylinder may be operating below normal performance.
Cylinders
Result: The test indicates a faulty cylinder.
Repair: Investigate the cause of the fault on any cylinder that is not operating. Investigate the cause of the fault on any cylinder that is operating below normal performance.
Result: The test indicates that all cylinders are OK.
Contact the Dealer Solutions Network (DSN).
