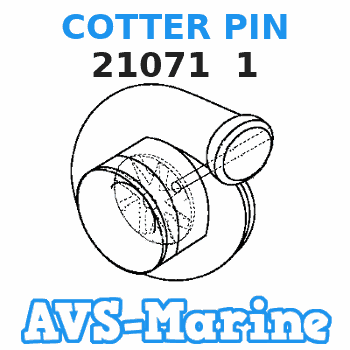

21071 1 Mercruiser COTTER PIN


21071 1 COTTER PIN Mercruiser 40200002D, 40200002G, 40280002D, 40420001D, 40420002D, 40500006T, 40500010T, 40500010U, 40500120U, 41510P1UE, 4211025RS, 4211025TS, 4211025TT, 4211025US, 4211025UU, 424106LRS, 424106LTT, 424106LUS, 424106PUU, 444236HRS, 473B116KD, 4C72040TD, 4C8204DL COTTER
21071 1 COTTER PIN Mercruiser
Rating:
48

Buy COTTER PIN 21071 1 Mercruiser genuine, new aftermarket parts with delivery

You can buy parts:

As an associate, we earn commssions on qualifying purchases through the links below
$42.94

13-10-2024
13.0[5.85] pounds
US: MedicalMartByMail
MedicalMartByMail MMBM Mini Stretch Wrap for Packing with Handles, 18 Pack, 3 Inch x 1000 Feet, Packing wrap Plastic roll Also a Furniture Wrap, Durable Clear Plastic wrap for Moving
MedicalMartByMail HEAVY DUTY - The stretch film wrap is made of industrial grade material that is extremely durable. || SELF–ADHERING - The film wrap sticks to itself offering a better cling, making sure to last throughout all your packing, moving, shipping and storing. || EASY TO USE - The stretch film is easy to unwrap and comes with one reusable handle, making bundling packages easier, faster and more efficient than tape, twine or straps. || PRESERVES ITEMS - The cling wrap protects your possessions from dust or stains, shields surfaces of furniture from scratches, scuffs and damage without leaving behind a residue. || MULTIPURPOSE USE - The stretch wrap is perfect for safely securing all types of items such as furniture, boxes or even objects featuring odd shapes.
Number on catalog scheme: 16


Mercruiser entire parts catalog list:

40200002D 1998
40200002G 1998
40280002D 1998
40420001D 1998
40420002D 1998
40500006T 1998
40500010T 1998
40500010U 1998
40500120U 1998
41510P1UE 1998
4211025RS 1998
4211025TS 1998
4211025TT 1998
4211025US 1998
4211025UU 1998
424106LRS 1998
424106LTT 1998
424106LUS 1998
424106PUU 1998
444236HRS 1998
473B116KD 1997,1998
4C72040TD 1998
4C8204DLD 1998
4M11025RS 1998
4M11025TS 1998
4M11025TT 1998
4M11025US 1998
4M4102LRS 1998
4M4102LTS 1998
4S42028N1 1998
4S42028TS 1998
4S42028TT 1998
4S42028UT 1998
4S42028UU 1998
4S420P8UE 1998
4V71222ND 1998
4V71222PD 1998
4V71222TD 1998

Information:


Table 1
Diagnostic Trouble Codes for the Intake Valve Actuators
J1939 Code    CDL Code    Description    Information
2950-5     1901-5     Engine Intake Valve Actuator #1 : Current Below Normal     The ECM monitors the current flow through the circuit for each actuator. If low current flow (open circuit) is detected, a -5 diagnostic code is activated. The ECM continues to try to activate the actuator. If high current flow (short circuit) is detected, a -6 diagnostic trouble code is activated. The ECM will disable the solenoid circuit in order to prevent damage from the high current flow. However, the ECM will periodically try to activate the actuator. If the short circuit remains, this sequence of events will be repeated until the problem is corrected.
The ECM takes the following actions while the code is active:
Engine power is derated by ten percent.
The amber warning lamp is illuminated.
These codes are usually caused by a wiring problem. The wiring problem can be on the outside of the engine or underneath the valve cover.
2950-6     1901-6     Engine Intake Valve Actuator #1 : Current Above Normal
2951-5     1902-5     Engine Intake Valve Actuator #2 : Current Below Normal
2951-6     1902-6     Engine Intake Valve Actuator #2 : Current Above Normal
2952-5     1903-5     Engine Intake Valve Actuator #3 : Current Below Normal
2952-6     1903-6     Engine Intake Valve Actuator #3 : Current Above Normal
2953-5     1904-5     Engine Intake Valve Actuator #4 : Current Below Normal
2953-6     1904-6     Engine Intake Valve Actuator #4 : Current Above Normal
2954-5     1905-5     Engine Intake Valve Actuator #5 : Current Below Normal
2954-6     1905-6     Engine Intake Valve Actuator #5 : Current Above Normal
2955-5     1906-5     Engine Intake Valve Actuator #6 : Current Below Normal
2955-6     1906-6     Engine Intake Valve Actuator #6 : Current Above Normal
Follow the troubleshooting procedure in order to identify the root cause of the problem.    System Operation During Engine OperationThe intake valve actuation system does not operate until the engine has reached normal operating temperature. Also, the engine must meet certain operating conditions in order to activate the intake valve actuation system.There are three housings under the valve cover. Each housing contains two actuators. There is a solenoid for each actuator. The ECM sends a command to a solenoid when the ECM requires the intake valves for a cylinder to remain open. The ECM monitors the current flow through the circuit for the solenoid. The ECM activates a diagnostic code if the current flow is below normal or above normal."Intake Valve Actuator Solenoid Test"This test is available on the Caterpillar Electronic Technician (ET). The test helps diagnose problems with the circuits for the solenoids. The following conditions must be met before the test will function:
Engine speed must be zero.
Vehicle speed must be zero.
The transmission gearshift lever must be in neutral.
Illustration 1 g02300033
Schematic for the C15 engine
Illustration 2 g01185728
P2 terminals for the intake valve actuators (18) Actuator 4 return (21) Actuator 5 return (22) Actuator 2 return (31) Actuator 3 return (42) Actuator 6 return (50) Actuator 1 return (58) Actuator 5 & 6 supply (67) Actuator 3 & 4 supply (68) Actuator 1 & 2 supply
Table 2
Troubleshooting Test Steps    Values    Results
1. Inspect the Electrical Connectors and the Wiring
A. Check the engine harness between the P2 connector and the connectors near the grommets. Look for the following problems:
1. Moisture
2. Loose connectors or damaged connectors
3.Damage that is caused by excessive heat
4. Damage that is caused by chafing
5. Improper routing of wiring
6. Damaged insulation
B.Inspect the connectors near the grommets. The connectors must be clean and dry.
C. Perform a 45 N (10 lb) pull test on each of the wires in the connectors. This test verifies that the wire is properly crimped to the terminal and that the terminal is properly inserted into the connector.

Moisture
Damage to connectors
Result: The wiring is OK.
If you are troubleshooting a -5 code, proceed to Test Step 2.
If you are troubleshooting a -6 code, proceed to Test Step 4.
Result: The wiring is not OK.
Repair the wiring problem. Replace parts, if necessary. Perform the "Intake Valve Actuator Solenoid Test".
If all of the actuators pass the test, troubleshooting is complete. Return the unit to service.

2. Short the External Wiring Harness
A.Connect a jumper wire to the engine harness connector. Connect the jumper wire between the appropriate terminals for the supply and for the return of the suspect actuator.
The jumper will replace the actuator and the valve cover wiring harness with a short circuit. Refer to Illustration 1 or Illustration 2.
B. Perform the "Intake Valve Actuator Solenoid Test". Determine the test result for the suspect cylinder.

Short Circuit indicated
Result: The test result indicated "Not Active: Device Open" for the suspect cylinder.
The ECM did not detect the jumper wire. There is an open circuit in the wiring between the valve cover connector and the P2 connector. There may be a problem inside a connector.
Repair the wiring problem. Replace parts, if necessary. Connect all of the electrical connectors.
Perform the "Intake Valve Actuator Solenoid Test". Verify that all of the cylinders pass the test.
Result: The test result indicated "Not Active: Device Short" for the suspect cylinder.
The ECM detected the jumper wire. The external engine wiring harness is OK.
proceed to Test Step 3.

3. Inspect Wiring Under the Valve Cover
A. Remove the valve cover. Look for these problems:
1. Loose connectors or damaged connectors
2.Damage that is caused by excessive heat
3. Damage that is caused by chafing
4. Improper routing of wiring
5. Damaged insulation
Repair any wiring problems. Replace parts, if necessary.
Connect all of the electrical connectors.
Perform the "Intake Valve Actuator Solenoid Test".

Damage to wires or connectors
Result: The suspect cylinder passed the test. the problem is resolved.
Return the engine to service.
Result: The suspect cylinder failed the test.
Replace the appropriate actuator housing.
Verify that all actuators pass the "Intake Valve Actuator Solenoid Test"


Parts cotter Mercruiser:

32857

32857 COTTER PIN, SHIFT ACTUATING CABLE TO ACTUATING ARM
00014332, 01207333, 01402414, 01407333, 01701335, 01751347, 01851333, 01854335, 02287333, 02602347, 02607333, 02608427, 04544347, 04707333, 04708004, 04881333, 06661346, 07711346, 08986342, 08987343, 2140208, 2165208, 2250507, 228801, 257B021JS, 2608
46950

46950 COTTER PIN, CLEVIS PIN RETAINING
00014332, 00019003, 01206002, 01207333, 01321017, 01326013, 01406002, 01407333, 02287333, 02607333, 03301310, 03302336, 03307332, 04706002, 04707333, 08986342, 2140208, 2165208, 2250507, 228801, 260801, 30001854, 32001876, 37011856, 41000001S, 410000
21071

21071 COTTER PIN, SHIFT LEVER
00014332, 01207333, 01402414, 01407333, 01701335, 01751347, 01854335, 02287333, 02602347, 02607333, 02608427, 04544347, 06661346, 07711346, 08987343, 257B021JS, 40430002S, 4052110CR, 4111021L1, 411102KN2, 4211015L1, 4211025RS, 4231017L1, 424106LRS, 4
32857 1

32857 1 COTTER PIN
40200002D, 40200002G, 40280002D, 40420001D, 40420002D, 40500006T, 40500010T, 40500010U, 40500120U, 41510P1UE, 4211025RS, 4211025TS, 4211025TT, 4211025US, 4211025UU, 424106LRS, 424106LTT, 424106LUS, 424106PUU, 444236HRS, 473B116KD, 4C72040TD, 4C8204DL
36002

36002 COTTER PIN
40280002D, 40420002D, 4S420P8UE
