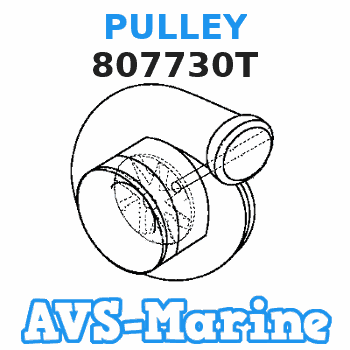

807730T PULLEY Mercruiser
40430002S, 40500006T, 40500010T, 40500010U, 40500120U, 4211015L1, 4211025RS, 4211025TS, 4211025TT, 4211025US, 4211025UU, 4231017L1, 424106LRS, 424106LTT, 424106LUS, 424106PUU, 4262C01JT, 4332087N1, 4350100KS, 4350104KS, 4350118KS, 443HC00JT, 4441027L
PULLEY
Price: query
Rating:
You can buy parts:
As an associate, we earn commssions on qualifying purchases through the links below
Skcvmn 807730T 807730 Fit for Mercru~ser 4.3L 5.0L 5.7L w/Serpentine Pulley Crankshaft 1996-2001
Skcvmn 807730T 807730 Fit For Mercru~ser 4.3L 5.0L 5.7L w/Serpentine Pulley Crankshaft 1996-2001 || Including: products as shown in the picture || This product is Aftermarket Replaces Mercru~ser Part 807730T 807730 || Pulley Crankshaft || Mercru~ser 4.3L 5.0L 5.7L
Skcvmn 807730T 807730 Fit For Mercru~ser 4.3L 5.0L 5.7L w/Serpentine Pulley Crankshaft 1996-2001 || Including: products as shown in the picture || This product is Aftermarket Replaces Mercru~ser Part 807730T 807730 || Pulley Crankshaft || Mercru~ser 4.3L 5.0L 5.7L
Quicksilver 807730T Crankshaft Pulley for MerCruiser
Quiksilver For use on MerCruiser sterndrives (1998 & newer) with V6 & V8 (305, 350 & 377 Cid) engines having serpentine belts || See your owner's manual, parts listing or service manual for exact application and installation instructions || Easy to install with common shop tools
Quiksilver For use on MerCruiser sterndrives (1998 & newer) with V6 & V8 (305, 350 & 377 Cid) engines having serpentine belts || See your owner's manual, parts listing or service manual for exact application and installation instructions || Easy to install with common shop tools
Compatible models:
40430002S
40500006T
40500010T
40500010U
40500120U
4211015L1
4211025RS
4211025TS
4211025TT
4211025US
4211025UU
4231017L1
424106LRS
424106LTT
424106LUS
424106PUU
4262C01JT
4332087N1
4350100KS
4350104KS
4350118KS
443HC00JT
4441027LE
444106AM1
444106LPS
444236HRS
457B100KS
457B101KS
4M11025LS
4M11025RS
4M11025TS
4M11025TT
4M11025US
4M31027LS
4M4102LPS
4M4102LRS
4M4102LTS
4R42027N1
Mercruiser
Mercruiser entire parts catalog list:
- FRONT COVER AND CIRULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- INTAKE MANIFOLD AND FRONT COVER » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- INTAKE MANIFOLD AND FRONT COVER » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- INTAKE MANIFOLD AND FRONT COVER » 807730T
- INTAKE MANIFOLD AND FRONT COVER » 807730T
- INTAKE MANIFOLD AND FRONT COVER » 807730T
- INTAKE MANIFOLD AND FRONT COVER » 807730T
- INTAKE MANIFOLD AND FRONT COVER » 807730T
- INTAKE MANIFOLD AND FRONT COVER » 807730T
- WATER PUMP AND FRONT COVER » 807730T
- WATER PUMP AND FRONT COVER » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- WATER PUMP AND FRONT COVER » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- INTAKE MANIFOLD AND FRONT COVER » 807730T
- INTAKE MANIFOLD AND FRONT COVER » 807730T
- WATER PUMP AND FRONT COVER » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- INTAKE MANIFOLD AND FRONT COVER » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- FRONT COVER AND CIRCULATING PUMP » 807730T
- WATER PUMP AND FRONT COVER » 807730T
Information:
4. Remove bolts (5) from each side of the turbocharger. Remove turbocharger (4) from the exhaust manifold.Install Turbocharger
1. Put 9M3710 Anti-Seize Compound on the threads of the four bolts for the turbocharger. 2. Put turbocharger (1) in position on the exhaust manifold and install the bolts that hold the turbocharger in place. Tighten the bolts to a torque of 40 4 lb.ft. (55 5 N m). 3. Connect oil return line (3) to the bottom of the turbocharger.4. Put clean engine oil in the opening in the turbocharger for the oil supply line and install oil supply line (2).5. Move hose (4) into position and tighten the two clamps. Move the hose, which is on the other side of the turbocharger, into position and tighten the two clamps. Disassemble Turbocharger
start by: a) remove turbocharger 1. Put the turbocharger in position tool (A).2. Put a mark on compressor housing (1) and the backplate assembly for use at assembly. Remove the compressor housing from the backplate assembly.3. Change the position of tool (A) so the compressor wheel is up as shown. 4. Put a mark on housing (2) and turbine housing (3) so that the housing can be put back in the same position in the turbine housing at assembly.5. Remove the bolts, lockplates and clamps that hold the housing in the turbine housing and remove the housing. 6. Put the housing in position on tool (B).7. Use tool (C) and a socket of the correct size to remove nut (5) from the shaft.
Do not put a side force on the shaft when the nut is removed.
8. Remove compressor wheel (4) from the shaft.9. Remove the housing from the shaft. 10. Remove shroud (6) from the turbine wheel and shaft. 11. Remove seal ring (7) from the turbine wheel.12. Put a mark on the housing and backplate assembly for use at assembly. Remove the bolts and plats that hold the housing to the backplate assembly. Remove the housing. 13. Remove bearing (8), collar (9) and the seal ring from backplate assembly (10).14. Remove the seal ring and bearing from the collar. 15. Remove seal ring (11) from the housing.16. Remove the snap ring, bearing (12) and the snap ring from each side of the housing.Assemble Turbocharger
1. Make sure all oil passages are clean and free of all dirt or foreign material. Put clean engine oil on all of the parts before assembly. 2. Install the inner snap ring, bearing (1) and snap ring (2) in each side of the housing. The snap rings must be installed with the round side toward the bearing. 3. Install the seal ring on collar (4).4. Put bearing (3) in position on the collar.
The oil grooves in the bearing must be clean and free of all dirt or foreign material. The bearing must be installed with the oil grooves toward the housing.
5. Put the bearing and collar in position on the housing so the oil grooves in the bearing are toward the housing and the holes in the bearing are in alignment with th pins in the housing.
Be extra careful during installation of the bearing and collar not to cause damage to the seal ring on the collar.
6. Install the seal ring on the housing.7. Put the backplate assembly in position on the housing respective to the marks put on the housing and backplate at disassembly. Install the plates and bolts. Tighten the bolts to a torque of 50 10 lb.in. (70 14 N m). 8. Install shroud (5) on the housing. 9. Put 4L7464 Silicone Grease in the groove for seal ring (7). Make sure the grease fills the groove approximately one half or more of the groove depth for the complete circumference of the groove to help make a carbon dam under the seal. Install seal ring (7). Carefully install turbine wheel and shaft (6) in the housing. 10. Put the housing, turbine wheel and shaft and the backplate assembly in position on tool (A). 11. Install compressor wheel (8) on the turbine shaft.12. Put clean engine oil on the threads of the shaft. Install the nut that holds the compressor wheel in place. Tighten the nut with tool (D) to a torque of 20 lb.in. (2.3 N m). Put a mark on the nut and shaft. Tighten the nut 100° more.
When the nut is tightened, do not put a side force on the shaft.
13. If the turbine housing was removed from tool (B), put the turbine housing in position on tool (B).14. Put the housing and wheels in position in the turbine housing respective to the marks put on the housings at disassembly. 15. Put 9M3710 Anti-Seize Compound on the threads of bolts (9). Install the clamps, lockplates, and the bolts (9). Install the clamps, lockplates, and the bolts. Tighten the bolts to a torque of 115 15 lb. in. (13 1.7 N m). Bend the lockplates against the bolt heads. 16. Put compressor housing (10) in position on the backplate assembly respective to the marks put on the housing and backplate assembly at disassembly.17. Install the clamps, lockplates, and bolts that hold the compressor housing in place. Tighten the bolts to a torque of 115 15 lb. in. (13 1.7 N m). Bend the lockplates against the bolt heads.18. Remove the turbocharger from tool (B).end by: a) install turbocharger
1. Put 9M3710 Anti-Seize Compound on the threads of the four bolts for the turbocharger. 2. Put turbocharger (1) in position on the exhaust manifold and install the bolts that hold the turbocharger in place. Tighten the bolts to a torque of 40 4 lb.ft. (55 5 N m). 3. Connect oil return line (3) to the bottom of the turbocharger.4. Put clean engine oil in the opening in the turbocharger for the oil supply line and install oil supply line (2).5. Move hose (4) into position and tighten the two clamps. Move the hose, which is on the other side of the turbocharger, into position and tighten the two clamps. Disassemble Turbocharger
start by: a) remove turbocharger 1. Put the turbocharger in position tool (A).2. Put a mark on compressor housing (1) and the backplate assembly for use at assembly. Remove the compressor housing from the backplate assembly.3. Change the position of tool (A) so the compressor wheel is up as shown. 4. Put a mark on housing (2) and turbine housing (3) so that the housing can be put back in the same position in the turbine housing at assembly.5. Remove the bolts, lockplates and clamps that hold the housing in the turbine housing and remove the housing. 6. Put the housing in position on tool (B).7. Use tool (C) and a socket of the correct size to remove nut (5) from the shaft.
Do not put a side force on the shaft when the nut is removed.
8. Remove compressor wheel (4) from the shaft.9. Remove the housing from the shaft. 10. Remove shroud (6) from the turbine wheel and shaft. 11. Remove seal ring (7) from the turbine wheel.12. Put a mark on the housing and backplate assembly for use at assembly. Remove the bolts and plats that hold the housing to the backplate assembly. Remove the housing. 13. Remove bearing (8), collar (9) and the seal ring from backplate assembly (10).14. Remove the seal ring and bearing from the collar. 15. Remove seal ring (11) from the housing.16. Remove the snap ring, bearing (12) and the snap ring from each side of the housing.Assemble Turbocharger
1. Make sure all oil passages are clean and free of all dirt or foreign material. Put clean engine oil on all of the parts before assembly. 2. Install the inner snap ring, bearing (1) and snap ring (2) in each side of the housing. The snap rings must be installed with the round side toward the bearing. 3. Install the seal ring on collar (4).4. Put bearing (3) in position on the collar.
The oil grooves in the bearing must be clean and free of all dirt or foreign material. The bearing must be installed with the oil grooves toward the housing.
5. Put the bearing and collar in position on the housing so the oil grooves in the bearing are toward the housing and the holes in the bearing are in alignment with th pins in the housing.
Be extra careful during installation of the bearing and collar not to cause damage to the seal ring on the collar.
6. Install the seal ring on the housing.7. Put the backplate assembly in position on the housing respective to the marks put on the housing and backplate at disassembly. Install the plates and bolts. Tighten the bolts to a torque of 50 10 lb.in. (70 14 N m). 8. Install shroud (5) on the housing. 9. Put 4L7464 Silicone Grease in the groove for seal ring (7). Make sure the grease fills the groove approximately one half or more of the groove depth for the complete circumference of the groove to help make a carbon dam under the seal. Install seal ring (7). Carefully install turbine wheel and shaft (6) in the housing. 10. Put the housing, turbine wheel and shaft and the backplate assembly in position on tool (A). 11. Install compressor wheel (8) on the turbine shaft.12. Put clean engine oil on the threads of the shaft. Install the nut that holds the compressor wheel in place. Tighten the nut with tool (D) to a torque of 20 lb.in. (2.3 N m). Put a mark on the nut and shaft. Tighten the nut 100° more.
When the nut is tightened, do not put a side force on the shaft.
13. If the turbine housing was removed from tool (B), put the turbine housing in position on tool (B).14. Put the housing and wheels in position in the turbine housing respective to the marks put on the housings at disassembly. 15. Put 9M3710 Anti-Seize Compound on the threads of bolts (9). Install the clamps, lockplates, and the bolts (9). Install the clamps, lockplates, and the bolts. Tighten the bolts to a torque of 115 15 lb. in. (13 1.7 N m). Bend the lockplates against the bolt heads. 16. Put compressor housing (10) in position on the backplate assembly respective to the marks put on the housing and backplate assembly at disassembly.17. Install the clamps, lockplates, and bolts that hold the compressor housing in place. Tighten the bolts to a torque of 115 15 lb. in. (13 1.7 N m). Bend the lockplates against the bolt heads.18. Remove the turbocharger from tool (B).end by: a) install turbocharger
