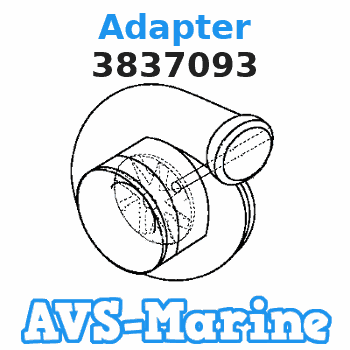

3837093 Volvo.Penta Adapter

Table 1
Required Tools
Tool Part Number Part Description Qty
A 477-8635 Tool As 1 Start By:
Remove the engine enclosure. Refer to "Engine Enclosure - Remove and Install".
Remove the hood (Clean Emission module. Refer to "Hood - Remove and Install".
Remove the main hydraulic pump. Refer to "Main Hydraulic Pump - Remove and Install".
Remove the swing pump. Refer to "Swing Pump - Remove and Install".
Remove the charge pump. Refer to "Gear Pump (Charge) - Remove and Install".
Personal injury can result from hydraulic oil pressure and hot oil.Hydraulic oil pressure can remain in the hydraulic system after the engine has been stopped. Serious injury can be caused if this pressure is not released before any service is done on the hydraulic system.Make sure all of the work tools have been lowered to the ground, and the oil is cool before removing any components or lines. Remove the oil filler cap only when the engine is stopped, and the filler cap is cool enough to touch with your bare hand.
Personal injury can result from hot coolant, steam, and alkali.At operating temperature, engine coolant is hot and under pressure. The radiator and all lines to heaters or the engine contain hot coolant or steam. Any contact can cause severe burns.Remove cooling system pressure cap slowly to relieve pressure only when engine is stopped and allow sufficient time for the cooling system to cool.Do not attempt to tighten hose connections when the coolant is hot, the hose can come off causing burns.Cooling System Coolant Additive contains alkali. Avoid contact with skin and eyes.
Personal injury can result from contact with refrigerant.Contact with refrigerant can cause frost bite. Keep face and hands away to help prevent injury.Protective goggles must always be worn when refrigerant lines are opened, even if the gauges indicate the system is empty of refrigerant.Always use precaution when a fitting is removed. Slowly loosen the fitting. If the system is still under pressure, release it slowly in a well ventilated area.Personal injury or death can result from inhaling refrigerant through a lit cigarette.Inhaling air conditioner refrigerant gas through a lit cigarette or other smoking method or inhaling fumes released from a flame contacting air conditioner refrigerant gas, can cause bodily harm or death.Do not smoke when servicing air conditioners or wherever refrigerant gas may be present.Use a certified recovery and recycling cart to properly remove the refrigerant from the air conditioning system.
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.Refer to Special Publication, PERJ1017, "Dealer Service Tool Catalog" for tools and supplies suitable to collect and contain fluids on Cat® products.Dispose of all fluids according to local regulations and mandates.
Drain the coolant. Refer to Operation and Maintenance Manual, "Cooling System Coolant (ELC) - Change" for the correct draining and filling procedures.
Turn the fuel shutoff valve to OFF position.
Recover the refrigerant. Refer to Service Manual, SENR5664, "Air Conditioning and Heating R134a for All Caterpillar Machines" for the recovery and the charging procedure. Refer to Special Publication, NENG2500, "Air Conditioning Tools" for the correct tools.
Drain the engine oil. Refer to Operation and Maintenance Manual, "Engine Oil and Filter - Change" for the correct draining and filling procedures.
Illustration 1 g06618026
Use two people to remove cover (2). The weight of cover (2) is approximately 21 kg (46 lb).
Remove bolts (1) and cover (2).
Use two people to remove cover (4). The weight of cover (4) is approximately 21 kg (46 lb).
Remove bolts (3) and cover (4).
Illustration 2 g06619228
Use two people to remove cover (6). The weight of cover (6) is approximately 21 kg (46 lb).
Remove bolts (5) and cover (6).
Illustration 3 g06619229
Disconnect hose assembly (7).
Illustration 4 g06619232
Remove the cable straps and disconnect harness assemblies (8) and (9).
Illustration 5 g06619233
Remove the cable straps and disconnect harness assembly (10).
Disconnect hose assemblies (11).
