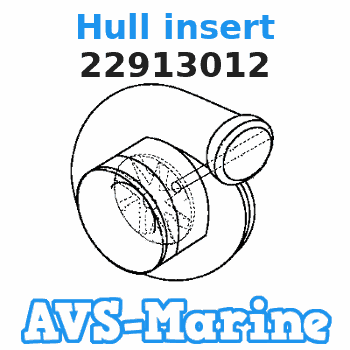

22913012 Hull insert Volvo.Penta
IPS15-A, IPS15-B
Hull

Price: query
Rating:
Volvo Penta entire parts catalog list:
Information:
Illustration 1 g01157197
Configuration of the harnesses for self test
Connect the harnesses. Refer to Illustration 1.Note: Leave connector "C" disconnected.
Restore the electrical power to the engine.
Set the engine control to the "STOP" mode.
Verify that the service tool is communicating with the EIS control module.Note: Disregard any diagnostic codes. Clear the codes after you complete this entire procedure.Expected Result:The electronic service tool is communicating with the EIS control module.Results:
OK - The electronic service tool is communicating with the EIS control module. Proceed to Test Step 3.
Not OK - The electronic service tool is not communication with the EIS control module.Repair: Perform the following procedure:
Verify that the harnesses are configured correctly.
Verify that the electronic service tool is receiving electrical power. Refer to Troubleshooting, "Electrical Power Supply".
If the problem persists, connect the harnesses to a different engine. Verify that the harnesses are not the source of the problem. Refer to Troubleshooting, "Electronic Service Tool Will Not Communicate with ECM", if necessary.STOPTest Step 3. Perform Test A
Prepare the DDT for the self test.
By using the DDT, scroll to menu 49. The screen on the DDT will display "PRESS <ALT 1> KEY".
Connect connector "A" to connector "C".
Initiate test A by pressing the "ALT1" key.Expected Result:The electronic service tool indicates that test A is in progress. When test A is complete, the electronic service tool will display a prompt.Results:
OK - The control module successfully completes test A. Proceed to Test Step 4.
Not OK - The control module fails test A. The electronic service tool indicates the failure. Proceed to Test Step 5.Test Step 4. Perform Test BNote: Connector "B" must be connected to connector "C" within five minutes or the self test will fail. If this occurs, restart the self test from "Test Step 3. Perform Test A".
Disconnect connector "A" from connector "C".Note: Wait for three seconds after connector "B" is connected to connector "C". Test B will begin automatically.
Connect connector "B" to connector "C".Expected Result:The electronic service tool indicates that test B is in progress. When test B is complete, the electronic service tool indicates that the self test was successful.Results:
OK - The EIS control module successfully completes test B.Repair: Perform the following procedure:
Set the engine control to the "OFF/RESET" mode.
Remove the electrical power from the engine.
Disconnect the test harness from the EIS control module.
Connect the engine harness to the EIS control module.
Restore the electrical power to the engine.
Clear any diagnostic codes. If you were directed to this test procedure by a different test procedure, return to that procedure now.STOP
Not OK - The EIS control module fails the test. The electronic service tool indicates the failure. Proceed to Test Step 5.Test Step 5. Identify the Fault for the EIS Control Module
Identify the fault that is displayed on the electronic service tool.
Refer to Table 1. Perform the corrective action that applies to the code.
Table 1
Diagnostic Codes for the Self Test
Code The Internal Circuit that Failed Corrective Action
1 Sensor inputs
Output for the warning lamp
Shutdown relay output
Sensor supply Replace the EIS control module.
2 Connector B was connected during test A.
Switch inputs
Output for the shutdown lamp Refer to "Results:" for this procedure.
3 Switch inputs
Output for the shutdown lamp Replace the EIS control module.
4 Switch inputs
Output drivers for the ignition transformers
5 Switch inputs
Output for the warning lamp
6 Sensor inputs
Sensor supply
Output for the warning lamp
Shutdown relay output
7 Switch inputs
Output for the shutdown lamp
8 Switch inputs
9 Output for the shutdown lamp
10 Input for the timing calibration
Shutdown relay output
Sensor supply
11 Internal failure of the EIS control module
12 Inputs for the detonation sensors
13 Internal failure of the EIS control module
14 Inputs for the detonation sensors
15 Inputs for the detonation sensors
Output drivers for the ignition transformers
16 Internal failure of the EIS control module
17 Internal failure of the EIS control module
18 Internal failure of the EIS control module
19 Input for the right detonation sensor
Output drivers for the ignition transformers
20 Input for the right detonation sensor
21 Input for the left detonation sensor Replace the EIS control module.
22 Input for the left detonation sensor
23 Sensor inputs
Output for the warning lamp
Shutdown relay output
Sensor supply
Returns for the ignition transformers
24 Switch inputs
Output for the shutdown lamp
25 Switch inputs
Output for the shutdown lamp
26 Switch inputs
27 Output drivers for the ignition transformers
Returns for the ignition transformers
28 Output drivers for the ignition transformers
Returns for the ignition transformers
29 Inputs for the detonation sensors
