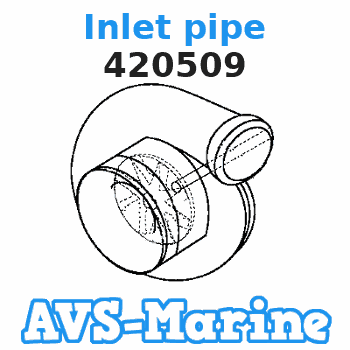

420509 Volvo.Penta Inlet pipe


420509 Inlet pipe Volvo.Penta TD610G; TWD610G; TD710G, TD610M; TD630ME; TWD630ME, TD610V; TWD610V; TD630VE, TD61A; TD61AW; TD61ACE Inlet
420509 Inlet pipe Volvo Penta
Rating:
78

Buy Inlet pipe 420509 Volvo Penta genuine, new aftermarket parts with delivery

You can buy parts:

As an associate, we earn commssions on qualifying purchases through the links below
$57.07

12-12-2024

US: WLSupply
Mechanics Choice Rear Disc Brake Pad Set for 2002-2014 Cadillac, Chevrolet, GMC (RWD) (with Caliper) (420509)
Sawyer Auto 【❗Fitment Details❗:】Location: Rear | V8 5.3L RWD | Quality-Built Black Series Semi-Metallic Brake Pads with Hardware | with Caliper || ✅【OE Standards:】Our Product Is Designed And Manufactured With Modern Tooling, Ensuring Optimal Quality And Reliability || ✅【Quality Manufacturing:】Replacement Parts are Specifically Designed to the Same Specifications and Use Better, More Durable Materials Than Those Provided by the OEM || ✅【Direct Replacement:】Our Direct Fit Replacement Product Installs Seamlessly, Just Like the Factory Unit || ✅【Road Tested:】Each Product Undergoes Rigorous Inspection to Ensure Utmost Reliability and Quality
$522.24


08-02-2023

-: -
4-20509 - Description : Mouse FibrOut 5, for Adrenal, Kidney, Pancreas, Pituitary - FibrOut, Mouse 5 Fibroblast Growth Inhibitors, CHI Scientific - Each (1ml)
Description : Mouse FibrOut 5, For Adrenal, Kidney, Pancreas, Pituitary || Size : 1 mL || Supplier No. : 4-20509
$38.99

12-12-2024
0.1[0.05] pounds
US: Weldfabulous
Hypertherm 420509 Shield, Duramax Hyamp, 65-125 A, Max Control Gouging
Hypertherm
Number on catalog scheme: 1


Volvo Penta entire parts catalog list:

TD610G; TWD610G; TD710G; TWD710G; TAD730G; TWD740GE; TAD740GE; TAD741GE
TD610M; TD630ME; TWD630ME; TD730ME; TWD730ME; TWD731ME
TD610V; TWD610V; TD630VE; TWD630VE; TD640VE; TWD610PB
TD61A; TD61AW; TD61ACE; TD61AG; TD61AGP; TD61AP; TD61APB; TID61AG; TD71A; TD71AW; TD71ACE; TD71AG; TD71AGP; TD71AP; TD71APB; TID71A; TID71AG; TID

Information:


Table 1
Specifications for Testing the Fuel Injection Nozzles
Bench Test Temperature 18° to 20 °C (64° to 70 °F)
Nozzle Cap Nut Torque 34 3 N m (25 2 lb ft) Introduction
Perform the following procedures in order to determine if a fuel injection nozzle does not work correctly. Required Tools
Table 2
Required Tools
Part Number Part Description Qty
5P-4150 Nozzle Testing Group 1
5P-4718 Adapter 1
6V-2170 Tube Assembly 1
8S-2270 Fuel Collector 1
1U-8857 Extension 1
6V-6068 SAE J-967 Calibration Fluid 1 Test Procedure
Bench test the fuel injection nozzles at a temperature of 18° to 20 °C (64° to 70 °F)Test the Fuel Injection Nozzles
Bench test the fuel injection nozzles at a temperature of 18° to 20 °C (64° to 70 °F)
Illustration 1 g01141683
Fuel injection nozzles and lines
(1) Nut for the fuel supply line
Run the engine at low idle.
Loosen the nut for the fuel supply line (1) at the fuel injection nozzle on cylinder number 1. Do not loosen the nut more than half of a turn. Listen for the low idle to decrease or become rough. Tighten the nut for the fuel supply line on cylinder number 1. Perform this test on each cylinder.
The fuel injection nozzle is faulty when the nut for the fuel supply line is loosened and the following events occur:
The engine rpm does not decrease.
The engine does not idle roughly.
Remove the faulty fuel injection nozzle for additional testing. Note: If leakage occurs at the nut for the fuel supply line, make sure that fuel supply line and the nut are correctly aligned with the inlet connection of the fuel injection nozzle. Do not tighten the nut for the fuel supply line on the high-pressure fuel line more than the recommended torque. If the nut is tightened more, the fuel line may become restricted or the threads of the fuel injection nozzle and the nut may be damaged.Cleaning of the Fuel Injection Nozzles
Before a fuel injection nozzle is tested, remove any loose carbon from the tip of the fuel injection nozzle. Do not use abrasive material or a wire brush in order to clean the nozzle. The fuel injection nozzle is not a serviceable part. Disassembling or adjusting the nozzle will violate the standards for emissions. Note: Extra care should be used in handling the fuel injection nozzle in order to prevent damage to the nozzle tip. A scratch or a burr could cause needle leakage or spray distortion. Dirt in the orifices of the nozzle tip can damage engine components. Dirt can also distort the spray pattern of the nozzle. Test the Spray Pattern
Ensure that you wear eye protection at all times during testing. When fuel injection nozzles are tested, test fluids travel through the orifices of the nozzle tip with high pressure. Under this amount of pressure, the test fluid can pierce the skin and cause serious injury to the operator. Always keep the tip of the fuel injection nozzle pointed away from the operator and into the fuel collector and extension.
Illustration 2 g00322083
Correct spray pattern for a fuel injection nozzle
Connect fuel injection nozzle (3) to the tooling that is shown in Illustration 3. Position the fuel injection nozzle so that the fuel spray is directed into the 1U-8857 Extension (4) and the 8S-2270 Fuel Collector (6).
Close the gauge protector valve and the shutoff valve. Open the pump isolator valve.
Pump the nozzle tester at approximately 60 strokes per minute and look at the spray pattern when the fluid begins to flow through the orifices of the fuel injection nozzle. The spray, which flows from all of the orifices, must have the same pattern. The fuel injection nozzle is faulty if there is a difference in the vertical patterns or a difference in the horizontal patterns. Refer to the correct spray pattern in Illustration 2. Note: If the nozzle tester is pumped too slowly, the fuel injection nozzle can develop a hydraulic lock. If this situation occurs, release the nozzle cap nut in order to release the pressure and then tighten the nozzle cap nut to a torque of 34 3 N m (25 2 lb ft). Test the spray pattern again.Note: Be sure that the gauge protector valve is closed before the fuel injection nozzle is removed from the nozzle tester. Closing the valve will prevent damage to the pressure gauge.Pressure Test
Ensure that you wear eye protection at all times during testing. When fuel injection nozzles are tested, test fluids travel through the orifices of the nozzle tip with high pressure. Under this amount of pressure, the test fluid can pierce the skin and cause serious injury to the operator. Always keep the tip of the fuel injection nozzle pointed away from the operator and into the fuel collector and extension.
Illustration 3 g01141684
5P-4150 Nozzle Testing Group
(1) 5P-4718 Adapter
(2) 6V-2170 Tube assembly


Parts inlet Volvo Penta:

3825908

3825908 Inlet valve
MD70C; TMD70C; TAMD70C, TAMD71A; TAMD72A, TAMD71B; TAMD73P-A; TAMD73WJ-A, TAMD72P-A; TAMD72WJ-A, TD610G; TWD610G; TD710G, TD71A; TID71A; TWD710V
3825723

3825723 Inlet valve, intake
TAMD61A; TAMD62A, TAMD63L-A; TAMD63P-A, TD610G; TWD610G; TD710G, TD610M; TD630ME; TWD630ME, TD610V; TWD610V; TD630VE, TWD610P; TWD610PB; TWD710P
471817
Inlet pipe
471817 Inlet pipe
TAMD71B; TAMD73P-A; TAMD73WJ-A, TD610G; TWD610G; TD710G, TD610M; TD630ME; TWD630ME, TD61A; TD61AW; TD61ACE, TD71A; TID71A; TWD710V, TWD610P; TWD610PB; TWD710P
8192910

8192910 Inlet manifold
TAMD74A; TAMD74A-A; TAMD74A-B, TD610G; TWD610G; TD710G
324344
Inlet valve
324344 Inlet valve
D100A; D100AK; D100B, D120A; D120AK; TD120A, D70B; D70B PP; D70B K, TD100G-87; TD1030ME; TWD1030ME, TD100G; TD100G-85; TD100G-87, TD60A; TD60B; TD60B PP, TD60D; TD60D-83; TD60DPP-83, TD61A; TD61AW; TD61ACE, TD70G; TD70G-83; TD70GPP
1698681

1698681 Inlet valve
TAD1030P, TAD1230P; TD121GP-87; TWD1210P, TD100G-87; TD1030ME; TWD1030ME, TD100G-87; TD1030VE; TAD1030V, TD121G-87; TWD1210V; TWD1211V, TD164KAE, TD610M; TD630ME; TWD630ME, TD61A; TD61AW; TD61ACE, TD71A; TID71A; TWD710V, TWD1230ME, TWD610P; TWD610PB;
3978768

3978768 Inlet valve
TD610G; TWD610G; TD710G, TD71A; TID71A; TWD710V
421532
Inlet pipe
421532 Inlet pipe
TD610G; TWD610G; TD710G, TD610M; TD630ME; TWD630ME, TD61A; TD61AW; TD61ACE, TD71A; TID71A; TWD710V
