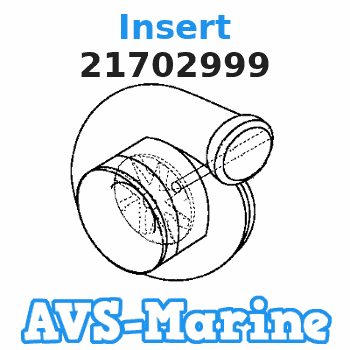

21702999 Volvo.Penta Insert


21702999 Insert Volvo.Penta D11A-A; D11A-B; D11A-C, D4-180I-B; D4-180I-C; D4-180I-D, D4-180I-F; D4-225A-F; D4-225I-F, D6-280A-A; D6-280A-B; D6-280A-C, D6-300A-F; D6-300D-F; D6-300I-F, D9A2A; D9A2A D9-425; D9A2A D9-500, D9A2A; D9A2A MG; D9A2A D9A-MG Insert
21702999 Insert Volvo Penta
Rating:
63

Buy Insert 21702999 Volvo Penta genuine, new aftermarket parts with delivery

You can buy parts:

As an associate, we earn commssions on qualifying purchases through the links below
$99.49

18-04-2025

US: Austral Internationa
21702999 Air Filter replaces 3818541 3583654 fits Volvo Penta Engines Model D4-A D4-B D4-C D4-D D4-E D4-F D4-G D6-A D6-B D6-C D6-D D6-E D6-F D6-G D9-MP D11-MP Genuine OEM
Generic Genuine OEM Volvo Penta Part || Fits Volvo Penta D4-180I-F, D4-225A-F, D4-225I-F, D4-260A-F, D4-260D-F, D4-260I-F, D4-300A-F, D4-300D-F, D4-300I-F, D6-300A-F, D6-300D-F, D6-300I-F, D6-330A-F, D6-330D-F, D6-330I-F, D6-370A-F, D6-370D-F, D6-370I-F, D6-400A-F, D6-435D-F, D6-435I-F, D6-435I-TC-F, D9A2L MH, D9A2M MP, D4-180I-B, D4-180I-C, D4-180I-D, D4-180I-E, D4-210A-A, D4-210A-B, D4-210I-A, D4-210I-B, D4-225A-B, D4-225A-C, D4-225A-D, D4-225A-E, D4-225I-B, D4-225I-C, D4-225I-D, D4-225I-E, D4-260A-A, D4-260A-B, D4-260A-C, D4-260A-D, D4-260A-E, D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E, D4-260I-A || D4-260I-B, D4-260I-C, D4-260I-D, D4-260I-E, D4-300A-A, D4-300A-C, D4-300A-D, D4-300A-E, D4-300D-A, D4-300D-C, D4-300D-D, D4-300D-E, D4-300I-A, D4-300I-C, D4-300I-D, D4-300I-E, D6-280A-A, D6-280A-B, D6-280A-C, D6-280A-D, D6-280A-E, D6-280I-A, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310A-A, D6-310A-B, D6-310A-C, D6-310A-D, D6-310A-E, D6-310D-B, D6-310D-C, D6-310D-D, D6-310D-E, D6-310I-A, D6-310I-B, D6-310I-C, D6-310I-D, D6-310I-E, D6-330A-B, D6-330A-C, D6-330A-D, D6-330A-E, D6-330D-B, D6-330D-C, D6-330D-D, D6-330D-E, D6-330I-B, D6-330I-C, D6-330I-D, D6-330I-E, D6-350A-A, D6-350A-B, D6-370A-B, D6-370A-C, D6-370A-D, D6-370A-E, D6-370D-A, D6-370D-B, D6-370D-C, D6-370D-D || D6-370D-E, D6-370I-A, D6-370I-B, D6-370I-C, D6-370I-D, D6-370I-E, D6-400A-E, D6-435D-A, D6-435D-C, D6-435D-D, D6-435D-E, D6-435I-A, D6-435I-C, D6-435I-D, D6-435I-E, DPH-A, TSK DPH-B, DPR-A, DPR-B, IPS-A, IPS-B, IPS-C, IPS-D, IPS-E, IPS-F, TSK DPH-A, D6-310D-A, D9A2A, D9A2A D9-425, D9A2A D9-500, D9A2A D9-500 (R4), D9A2A D9-575, D9A2B D9-425, D9A2B D9-500 (R5), D9A2B D9-575, D9A2C D9-425, D9A2D D9-500 (R5), D9A2E || D9-425, D9A2A D9A-MH, D9A2F D9-575, D9A2K D9-575, D9A2A MH, D9A2C MH, D9A2C D9A-MH, D9A2A MP, D9A2B MP, D9A2C, D9A2D, D9A2E, D9A2F, D9A2G, D9A2H, D9A2J, D9A-J, D9A-K, D9A2K, D9A2B, D11A-A, D11A-B, D11A-C, D11A-D MP, D11A-D (IPS), D11A-E, D11A-E MP, D11A-C MP, D11A-C (IPS), D9A2A, D9A2A MG, and D9A-MG || Protects engine from ingestion of dust, dirt, and particulates.
$50.15

04-04-2025
0.1102[0.05] pounds
CN: TRIFUNESS store
1x Auto Air for Marine Spare Part Boats for Volvo, for Penta, D4, D6, D9, D11, 21702999, 3818541, 3583654, 117303
TRIFUNESS 【Product Quality】The product is the same as the description, very perfect, so that your vehicle works better and uses better. || 【Specialized factory】We have our own factory with plenty of stock and guaranteed quality. || 【Good performance】Simple to install, easy to use, in line with the original specifications. || 【Good service】We have a professional team to provide you with excellent service, so that you can buy with confidence and use with comfort. || 【Pre-purchase inspection】Please double check the model, size and year of the product before purchase to make sure the product is what you need.
$55.29

04-04-2025
0.1102[0.05] pounds
CN: quanzhoushiyinghongm
1pc Engine Air Filter Replacement Accessories For Volvo Penta D4 D6 D9 D11 OE 21702999 3818541 3583654 117303
UYUYU 100% brand new never used || Made of high-quality materials. || Highly matched with the original equipment. || Easy to install, simple to use, durable and practical.
Number on catalog scheme: 3


Volvo Penta entire parts catalog list:

D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)
D4-180I-B; D4-180I-C; D4-180I-D; D4-180I-E; D4-210A-A; D4-225A-B; D4-210I-A; D4-210I-B; D4-225I-B; D4-225A-C; D4-225A-D; D4-225I-C; D4-225I-
D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-F
D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-
D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-
D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9
D9A2A; D9A2A MG; D9A2A D9A-MG

Information:


Illustration 1 g01459083
Schematic for engine temperature sensors
Illustration 2 g01459099
Pin locations for the temperature sensors on the P2 connector (37) Ground (GND) Intake Manifold Air Temperature Sensor (37) Ground (GND) Coolant Temperature Sensor (42) Signal (SIG) Intake Manifold Air Temperature Sensor (43) Signal (SIG) Coolant Temperature Sensor
Illustration 3 g01170313
Engine coolant temperature sensor and intake manifold air temperature sensor (1) Signal (SIG) (2) Ground (GND)Test Step 1. Verify All Active Diagnostic Codes
Connect the electronic service tool to the data link connector.
Turn the keyswitch to the ON position.Note: Wait at least 30 seconds for activation of the diagnostic codes.
Use the electronic service tool in order to verify if any of the following diagnostic codes are active or recently logged:
0110-03 Engine Coolant Temperature Sensor voltage above normal
0110-04 Engine Coolant Temperature Sensor voltage below normal
0172-03 Intake Manifold Air Temperature Sensor voltage above normal
0172-04 Intake Manifold Air Temperature Sensor voltage below normalExpected Result:One or more of the preceding diagnostic codes are active or recently logged.Results:
Yes - Proceed to Test Step 2.
No - The fault is intermittent. Proceed to Test Step 8.Test Step 2. Inspect Electrical Connectors And Wiring
Thoroughly inspect ECM engine harness connector P2 and the suspect sensor connector. Refer to Troubleshooting, "Electrical Connectors - Inspect".
Perform a 45 N (10 lb) pull test on each of the wires in the sensor connector and the ECM connector that are associated with the active diagnostic code.Refer to illustration 2.
Verify that the latch tab of the connector is correctly latched. Also verify that the latch tab of the connector has returned to the fully latching position.
Check the screw for the ECM connector for the correct torque of 5.0 N m (44 lb in).
Check the harness for abrasions and for pinch points from the sensor to the ECM.Expected Result:All connectors, pins, and sockets should be completely coupled and/or inserted. The harness should be free of corrosion, abrasion, and pinch points.Results:
OK - Proceed to Test Step 3.
Not OK - Repair the connectors or the harness and/or replace the connectors or the harness. Ensure that all of the seals are correctly in place and ensure that the connectors are completely coupled. Use the electronic service tool in order to clear all logged diagnostic codes and then verify that the repair has eliminated the fault. If the fault has not been eliminated, proceed to Test Step 3.Test Step 3. Verify That The Diagnostic Code Is Still Active
Turn the keyswitch to the ON position.Note: Wait at least 10 seconds for activation of the diagnostic codes.
Access the "Active Diagnostic Code" screen on the electronic service tool and check for active diagnostic codes.
Determine if the fault is related to a Voltage Above Normal diagnostic code or a Voltage Below Normal diagnostic code.Expected Result:A Voltage Below Normal diagnostic code or an Voltage Above Normal diagnostic code is active.Results:
OK - SHORT Circuit - A Voltage Below Normal diagnostic code is active at this time. Proceed to Test Step 4.
OK - OPEN Circuit - An Voltage Above Normal diagnostic code is active at this time. Proceed to Test Step 5.
Not OK - A Voltage Below Normal diagnostic code is not active. An Voltage Above Normal diagnostic code is not active. An intermittent fault may exist.Repair: Use the electronic service tool to perform a "Wiggle Test". If faults are indicated then go to the appropriate procedure. STOPTest Step 4. Disconnect The Sensor In Order To Create An Open Circuit
Turn the keyswitch to the OFF position.
Disconnect the sensor connector of the sensor with the Voltage Below Normal diagnostic code.
Turn the keyswitch to the ON position.Note: Wait at least 10 seconds for activation of the diagnostic codes.
Access the "Active Diagnostic Code" screen of the electronic service tool. Check for an active Voltage Above Normal diagnostic code.Expected Result:A Voltage Above Normal diagnostic code for the disconnected sensor is now active.Results:
OK - A Voltage Below Normal diagnostic code was active before disconnecting the sensor. An Voltage Above Normal diagnostic code became active after disconnecting the sensor.Repair: Perform the following procedure:Replace the sensor.Use the electronic service tool in order to clear all logged diagnostic codes.
Inspect the seals of the connectors for damage. Refer to Troubleshooting, "Electrical Connectors - Inspect".
Connect the sensor and check that the fault is eliminated.
If the fault returns, perform the following procedure:
Temporarily connect a new sensor to the harness but do not install the new sensor in the engine.
Use the electronic service tool to verify that the replacement sensor eliminates the fault.
If the diagnostic code is eliminated, install the replacement sensor.
Use the electronic service tool to clear the logged diagnostic codes.STOP
Not OK -


Parts insert Volvo Penta:

861014
Insert
861014 Insert
AD31D; AD31D-A; AD31XD, AD31L-A; AD31P-A; AD41L-A, AD41D; D41D; TAMD41D, D1-13; D1-13B; D1-20, D2-55; D2-55B; D2-55C, D2-75; D2-75B; D2-75C, D3-110I-A; D3-110I-B; D3-110I-C, D3-110I-D; D3-110I-E; D3-110I-F, D3-110I-G; D3-140A-G; D3-140I-G, D3-110I-H;
3581760
Insert
3581760 Insert
AD31D; AD31D-A; AD31XD, AD31L-A; AD31P-A; AD41L-A, AD41D; D41D; TAMD41D, D1-13; D1-13B; D1-20, D2-55; D2-55B; D2-55C, D2-75; D2-75B; D2-75C, D3-110I-A; D3-110I-B; D3-110I-C, D3-110I-D; D3-110I-E; D3-110I-F, D3-110I-G; D3-140A-G; D3-140I-G, D3-110I-H;
3818541
Insert
3818541 Insert
D11A-A; D11A-B; D11A-C, D4-180I-B; D4-180I-C; D4-180I-D, D6-280A-A; D6-280A-B; D6-280A-C, D9A2A; D9A2A D9-425; D9A2A D9-500, D9A2A; D9A2A MG; D9A2A D9A-MG
3817249

3817249 Insert
D11A-A; D11A-B; D11A-C, D11B1-A MP; D11B2-A MP, D11B3-A MP; D11B4-A MP, D8A1-A MP; D8A2-A MP, D9A2A; D9A2A D9-425; D9A2A D9-500
3584145
Insert
3584145 Insert
D4-180I-B; D4-180I-C; D4-180I-D, D4-180I-F; D4-225A-F; D4-225I-F, D6-280A-A; D6-280A-B; D6-280A-C, D6-300A-F; D6-300D-F; D6-300I-F, D9A2A; D9A2A D9-425; D9A2A D9-500, D9A2A; D9A2A MG; D9A2A D9A-MG
3808746

3808746 Insert
D4-180I-B; D4-180I-C; D4-180I-D, D4-180I-F; D4-225A-F; D4-225I-F, D6-280A-A; D6-280A-B; D6-280A-C, D6-300A-F; D6-300D-F; D6-300I-F
