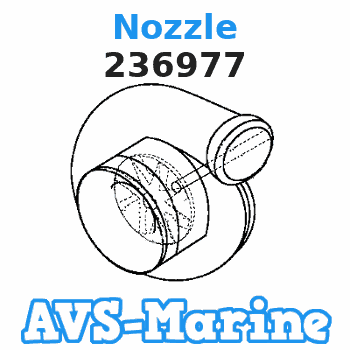

236977 Volvo.Penta Nozzle

Cross-Reference Information for Event Codes
Event codes are generated when abnormal operating conditions exist. Table 1 is a list of the event codes for the engine. The event codes are cross-referenced with the appropriate procedure that can be used to troubleshoot the code.
Table 1
Cross-Reference from Diagnostic Trouble Codes to Functional Test or Procedure
J1939 Code and Description CDL Code and Description Troubleshooting Procedure
52–0
Engine Intercooler Temperature : Voltage Above Normal E771 (3)
High Aftercooler Temperature Troubleshooting, "Aftercooler Coolant Temperature Is High"
52–15
Engine Intercooler Temperature : Voltage Below Normal E771 (1)
High Aftercooler Temperature Troubleshooting, "Aftercooler Coolant Temperature Is High"
94-16
Engine Fuel Delivery Pressure : High - moderate severity (2) E1218 (2)
High Unfiltered Fuel Pressure Troubleshooting, "Fuel Pressure Is High"
99-0
Engine Oil Filter Differential Pressure : High - most severe (3) E73 (3)
High Oil Filter Differential Pressure Troubleshooting, "Oil Filter Differential Pressure Problem"
99-15
Engine Oil Filter Differential Pressure : High - least severe (1) E73 (1)
High Oil Filter Differential Pressure Troubleshooting, "Oil Filter Differential Pressure Problem"
99-16
Engine Oil Filter Differential Pressure : High - moderate severity (2) E73 (2)
High Oil Filter Differential Pressure Troubleshooting, "Oil Filter Differential Pressure Problem"
100-1
Engine Oil Pressure : Low - most severe (3) E360 (3)
Low Engine Oil Pressure Troubleshooting, "Oil Pressure Is Low"
100-17
Engine Oil Pressure : Low - least severe (1) E360 (1)
Low Engine Oil Pressure Troubleshooting, "Oil Pressure Is Low"
100-18
Engine Oil Pressure : Low - moderate severity (2) E360 (2)
Low Engine Oil Pressure Troubleshooting, "Oil Pressure Is Low"
101-0
Engine Crankcase Pressure : High - most severe (3) E1036 (3)
High Crankcase Pressure Troubleshooting, "Crankcase Pressure Is High"
101-15
Engine Crankcase Pressure : High - least severe (1) E1036 (1)
High Crankcase Pressure Troubleshooting, "Crankcase Pressure Is High"
101-16
Engine Crankcase Pressure : High - moderate severity (2) E1036 (2)
High Crankcase Pressure Troubleshooting, "Crankcase Pressure Is High"
105-0
Engine Intake Manifold #1 Temperature : High - most severe (3) E539 (3)
High Intake Manifold Air Temperature Troubleshooting, "Intake Manifold Air Temperature Is High"
105-15
Engine Intake Manifold #1 Temperature : High - least severe (1) E539 (1)
High Intake Manifold Air Temperature Troubleshooting, "Intake Manifold Air Temperature Is High"
105-16
Engine Intake Manifold #1 Temperature : High - moderate severity (2) E539 (2)
High Intake Manifold Air Temperature Troubleshooting, "Intake Manifold Air Temperature Is High"
107-15
Engine Air Filter 1 Differential Pressure : High - least severe (1) E583 (1)
High Engine Air Filter #1 Differential Pressure Troubleshooting, "Inlet Air Is Restricted"
107-16
Engine Air Filter 1 Differential Pressure : High - moderate severity (2) E583 (2)
High Engine Air Filter #1 Differential Pressure Troubleshooting, "Inlet Air Is Restricted"
109-1
Engine Coolant Pressure : Low - Most Severe (3) E2112 (3)
Low Engine Coolant Pressure Troubleshooting, "Coolant Pressure Is Low"
109-17
Engine Coolant Pressure : Low - Least Severe E2112 (1
Low Engine Coolant Pressure Troubleshooting, "Coolant Pressure Is Low"
110-0
Engine Coolant Temperature : High - most severe (3) E361 (3)
High Engine Coolant Temperature Troubleshooting, "Coolant Temperature Is High"
110-1
Engine Coolant Temperature : Low - most severe (3) E199 (3)
Low Coolant Temperature Troubleshooting, "Coolant Temperature Is Low"
110-15
Engine Coolant Temperature : High - least severe (1) E361 (1)
High Engine Coolant Temperature Troubleshooting, "Coolant Temperature Is High"
110-16
Engine Coolant Temperature : High - moderate severity (2) E361 (2)
High Engine Coolant Temperature Troubleshooting, "Coolant Temperature Is High"
110-17
Engine Coolant Temperature : Low - least severe (1) E199 (1)
Low Coolant Temperature Troubleshooting, "Coolant Temperature Is Low"
110-18
Engine Coolant Temperature : Low - moderate severity (2) E199 (2)
Low Coolant Temperature Troubleshooting, "Coolant Temperature Is Low"
157-7
Engine Injector Metering Rail #1 Pressure : Not Responding Properly E1069 (1)
Fuel Rail #1 Pressure Not Responding Troubleshooting, "Fuel Rail Pressure Problem"
157–15
Engine Injector Metering Rail #1 Pressure : High - least severe (1) E396 (1)
High Fuel Rail Pressure Troubleshooting, "Fuel Rail Pressure Is High"
157–17
Engine Injector Metering Rail #1 Pressure : Low - least severe (1) E398(1)
Low Fuel Rail Pressure Troubleshooting, "Fuel Flow Is High"
157–18
Engine Injector Metering Rail #1 Pressure : Low - moderate severity (2) E398 (2)
Low Fuel Rail Pressure Troubleshooting, "Fuel Flow Is High"
173-16
Engine Exhaust Gas Temperature : High - moderate severity (2) E194 (2)
High Exhaust Temperature Troubleshooting, "Exhaust Temperature Is High"
174–0
Engine Fuel Temperature 1 : High - most severe (3) E363 (3)
High Fuel Supply Temperature Troubleshooting, "Fuel Temperature Is High"
174–15
Engine Fuel Temperature 1 : High - least severe (1) E363 (1)
High Fuel Supply Temperature Troubleshooting, "Fuel Temperature Is High"
174–16
Engine Fuel Temperature 1 : High - moderate severity E363 (2)
High Fuel Supply Temperature Troubleshooting, "Fuel Temperature Is High"
175–0
Engine Oil Temperature 1 : High - most severe (3) E197 (3)
High Engine Oil Temperature Troubleshooting, "Oil Temperature Is High"
175–15
Engine Oil Temperature 1 : High - least severe (1) E197 (1)
High Engine Oil Temperature Troubleshooting, "Oil Temperature Is High"
175–16
Engine Oil Temperature 1 : High - moderate severity (2) E197 (2)
High Engine Oil Temperature Troubleshooting, "Oil Temperature Is High"
190-0
Engine Speed : High - most severe (3) E362 (3)
Engine Overspeed Troubleshooting, "Engine Overspeeds"
190-15
Engine Speed : High - least severe (1)
