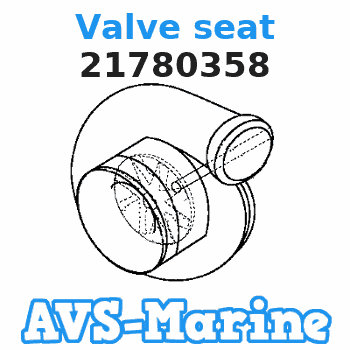

21780358 Volvo.Penta Valve seat

Table 1
Cross-Reference from Diagnostic Trouble Codes to Functional Test or Procedure
J1939 Code and Description CDL Code and Description Troubleshooting Procedure
91-3
Accelerator Pedal Position #1 : Voltage Above Normal 91-3
Accelerator Pedal Position #1 : Voltage Above Normal Troubleshooting, Speed Control-Test
91-4
Accelerator Pedal Position #1 : Voltage Below Normal 91-4
Accelerator Pedal Position #1 : Voltage Below Normal Troubleshooting, Speed Control-Test
91-8
Accelerator Pedal Position #1 : Abnormal Frequency, Pulse Width, or Period 91-8
Accelerator Pedal Position #1 : Abnormal Frequency, Pulse Width, or Period Troubleshooting, Speed Control-Test
100-3
Engine Oil Pressure : Voltage Above Normal 100-3
Engine Oil Pressure : Voltage Above Normal Troubleshooting, "Sensor Signal (Analog, Active) - Test"
100-4
Engine Oil Pressure : Voltage Below Normal 100-4
Engine Oil Pressure : Voltage Below Normal Troubleshooting, "Sensor Signal (Analog, Active) - Test"
100-13
Engine Oil Pressure : Out of Calibration 100-13
Engine Oil Pressure Sensor : Out of Calibration Troubleshooting, "Sensor Calibration Required - Test"
105-3
Engine Intake Manifold #1 Temperature : Voltage Above Normal 172-3
Intake Manifold Air Temperature Sensor : Voltage Above Normal Troubleshooting, "Sensor Signal (Analog, Passive) - Test"
105-4
Engine Intake Manifold #1 Temperature : Voltage Below Normal 172-4
Intake Manifold Air Temperature Sensor : Voltage Below Normal Troubleshooting, "Sensor Signal (Analog, Passive) - Test"
108-3
Barometric Pressure : Voltage Above Normal 3528-3
Barometric Pressure Sensor : Voltage Above Normal Troubleshooting, "Sensor Signal (Analog, Active) - Test"
108-4
Barometric Pressure : Voltage Below Normal 3528-4
Barometric Pressure : Voltage Below Normal Troubleshooting, "Sensor Signal (Analog, Active) - Test"
108-13
Barometric Pressure : Data Drifted Low 3528-21
Barometric Pressure : Data Drifted Low Troubleshooting, "Sensor Supply - Test"
108-21
Barometric Pressure : Data Drifted Low 3528-21
Barometric Pressure : Data Drifted Low Troubleshooting, "Sensor Supply - Test"
110-3
Engine Coolant Temperature : Voltage Above Normal 110-3
Engine Coolant Temperature : Voltage Above Normal Troubleshooting, "Sensor Signal (Analog, Passive) - Test"
110-4
Engine Coolant Temperature : Voltage Below Normal 110-4
Engine Coolant Temperature : Voltage Below Normal Troubleshooting, "Sensor Signal (Analog, Passive) - Test"
168-2
Battery Potential / Power Input #1 : Erratic, Intermittent, or Incorrect 168-2
Electrical System Voltage : Erratic, Intermittent, or Incorrect Troubleshooting, "Electrical Power Supply - Test"
168-3
Battery Potential / Power Input #1 : Voltage Above Normal 168-3
Electrical System Voltage : Voltage Above Normal Troubleshooting, "Electrical Power Supply - Test"
168-4
Battery Potential / Power Input #1 : Voltage Below Normal 168-4
Electrical System Voltage : Voltage Below Normal Troubleshooting, "Electrical Power Supply - Test"
172-3
Engine Air Inlet Temperature : Voltage Above Normal 2526-3
Air Inlet Temperature Sensor : Voltage Above Normal Troubleshooting, "Sensor Signal (Analog, Passive) - Test"
172-4
Engine Air Inlet Temperature : Voltage Below Normal 2526-4
Air Inlet Temperature Sensor : Voltage Below Normal Troubleshooting, "Sensor Signal (Analog, Passive) - Test"
174-3
Engine Fuel Temperature 1 : Voltage Above Normal 174-3
Fuel Temperature Sensor : Voltage Above Normal Troubleshooting, "Sensor Signal (Analog, Passive) - Test"
174-4
Engine Fuel Temperature 1 : Voltage Below Normal 174-4
Fuel Temperature Sensor : Voltage Below Normal Troubleshooting, "Sensor Signal (Analog, Passive) - Test"
190-8
Engine Speed : Abnormal Frequency, Pulse Width, or Period 190-8
Engine Speed Sensor : Abnormal Frequency, Pulse Width, or Period Troubleshooting, "Speed/Timing - Test"
631-2
Calibration Module : Erratic, Intermittent, or Incorrect 253-2
Personality Module : Erratic, Intermittent, or Incorrect Troubleshooting, "ECM Software - Install"
637-11
Engine Timing Sensor : Other Failure Mode 261-11
Engine Timing Offset fault Troubleshooting, "Speed/Timing - Test"
639-9
J1939 Network #1 : Abnormal Update Rate 247-9
SAE J1939 Data Link : Abnormal Update Rate Troubleshooting, "Data Link - Test"
651-5
Engine Injector Cylinder #01 : Current Below Normal 1-5
Cylinder #1 Injector : Current Below Normal Troubleshooting, "Injector Solenoid - Test"
651-6
Engine Injector Cylinder #01 : Current Above Normal 1-6
Cylinder #1 Injector : Current Above Normal Troubleshooting, "Injector Solenoid - Test"
652-5
Engine Injector Cylinder #02 : Current Below Normal 2-5
Cylinder #2 Injector : Current Below Normal Troubleshooting, "Injector Solenoid - Test"
652-6
Engine Injector Cylinder #02 : Current Above Normal 2-6
Cylinder #2 Injector : Current Above Normal Troubleshooting, "Injector Solenoid - Test"
653-5
Engine Injector Cylinder #03 : Current Below Normal 3-5
Cylinder #3 Injector : Current Below Normal Troubleshooting, "Injector Solenoid - Test"
653-6
Engine Injector Cylinder #03 : Current Above Normal 3-6
Cylinder #3 Injector : Current Above Normal Troubleshooting, "Injector Solenoid - Test"
654-5
Engine Injector Cylinder #04 : Current Below Normal 4-5
Cylinder #4 Injector : Current Below Normal Troubleshooting, "Injector Solenoid - Test"
654-6
Engine Injector Cylinder #04 : Current Above Normal 4-6
Cylinder #4 Injector : Current Above Normal Troubleshooting, "Injector Solenoid - Test"
655-5
Engine Injector Cylinder #05 : Current Below Normal 5-5
Cylinder #5 Injector : Current Below Normal Troubleshooting, "Injector Solenoid - Test"
655-6
Engine Injector Cylinder #05 : Current Above Normal 5-6
Cylinder #5 Injector : Current Above Normal Troubleshooting, "Injector Solenoid - Test"
656-5
Engine Injector Cylinder #06 : Current Below Normal 6-5
Cylinder #6 Injector : Current Below Normal Troubleshooting, "Injector Solenoid - Test"
656-6
Engine Injector Cylinder #06 : Current Above Normal 6-6
Cylinder #6 Injector : Current Above Normal Troubleshooting, "Injector Solenoid - Test"
657-5
Engine Injector Cylinder #07 : Current Below Normal 7-5
Cylinder #7 Injector : Current Below Normal Troubleshooting, "Injector Solenoid - Test"
657-6
Engine Injector Cylinder #07 : Current Above Normal 7-6
Cylinder #7 Injector : Current Above Normal Troubleshooting, "Injector Solenoid - Test"
658-5
Engine Injector Cylinder #08 : Current Below Normal 8-5
Cylinder #8 Injector : Current Below Normal Troubleshooting, "Injector Solenoid - Test"
658-6
Engine Injector Cylinder #08 : Current Above Normal 8-6
Cylinder #8 Injector : Current Above Normal Troubleshooting, "Injector Solenoid - T
